V10PWM45 - Trench MOS Barrier Schottky Rectifier

Product Overview

Vishay

📥 Download Datasheet

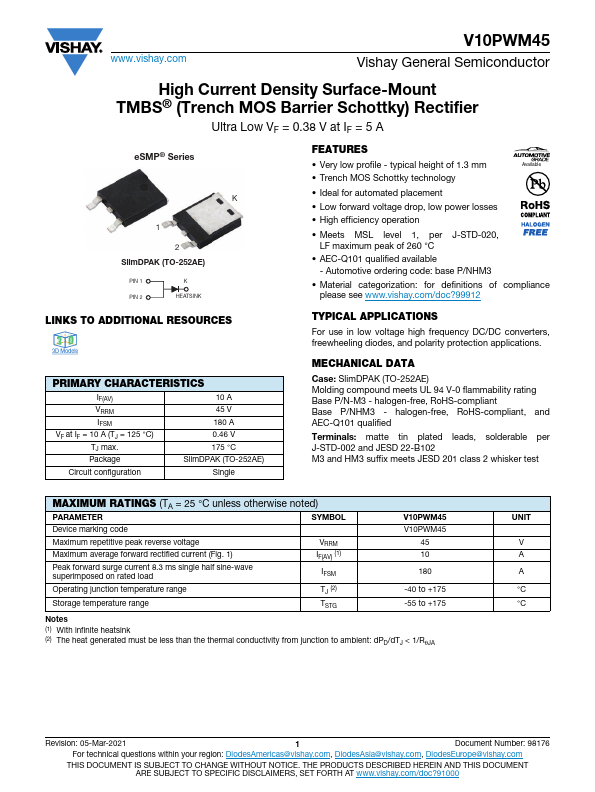

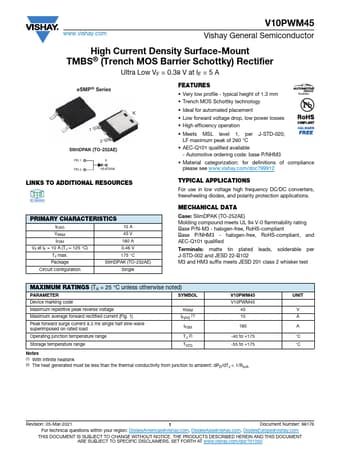

V10PWM45 Trench MOS Barrier Schottky Rectifier by Vishay - Datasheet Preview — Datasheet preview – V10PWM45

Datasheet Details

Part number	V10PWM45
Manufacturer	Vishay
File Size	135.12 KB
Description	Trench MOS Barrier Schottky Rectifier
Datasheet	V10PWM45 Datasheet

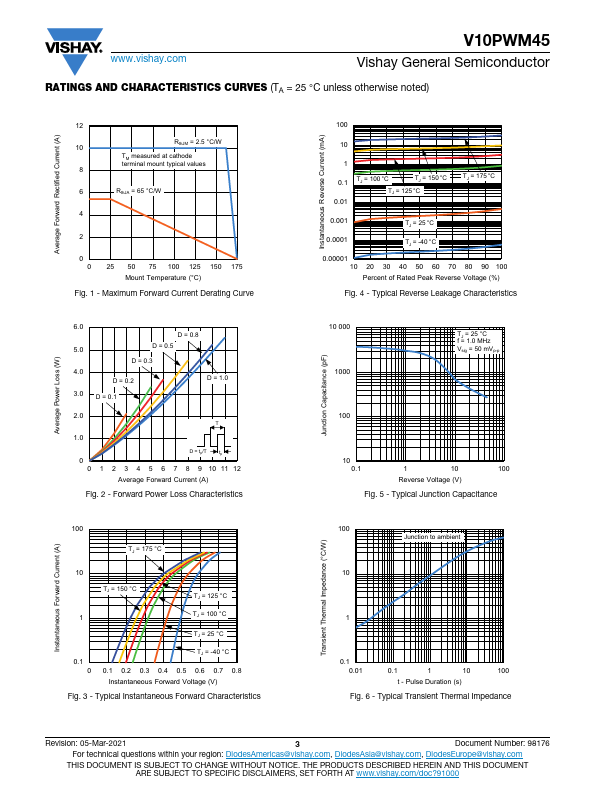

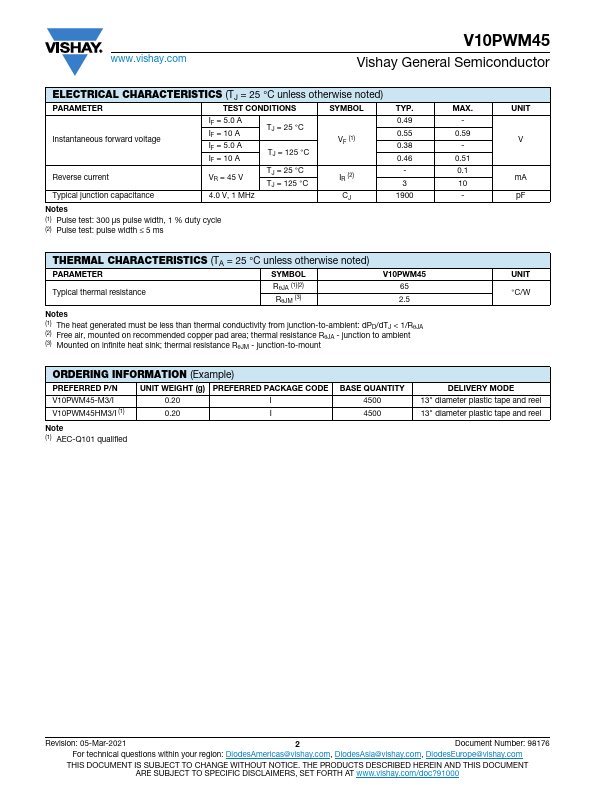

Additional preview pages of the V10PWM45 datasheet.

Product details

Features

Very low profile - typical height of 1.3 mm Available.
Trench MOS Schottky technology.
Ideal for automated placement.
Low forward voltage drop, low power losses.
High efficiency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHM3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS.
