V10P20 Trench MOS Barrier Schottky Rectifier

V10P20 Description

www.vishay.com V10P20 Vishay General Semiconductor High Current Density Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.

V10P20 Features

* Very low profile - typical height of 1.1 mm
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

V10P20 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters and polarity protection applications. MECHANICAL DATA Case: SMPC (TO-277A) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Terminals: matte tin plated

📥 Download Datasheet

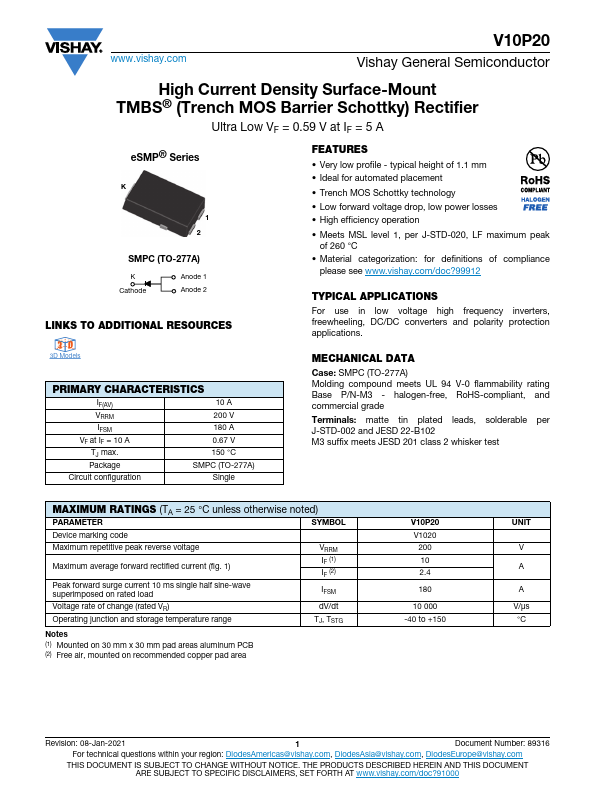

Preview of V10P20 PDF

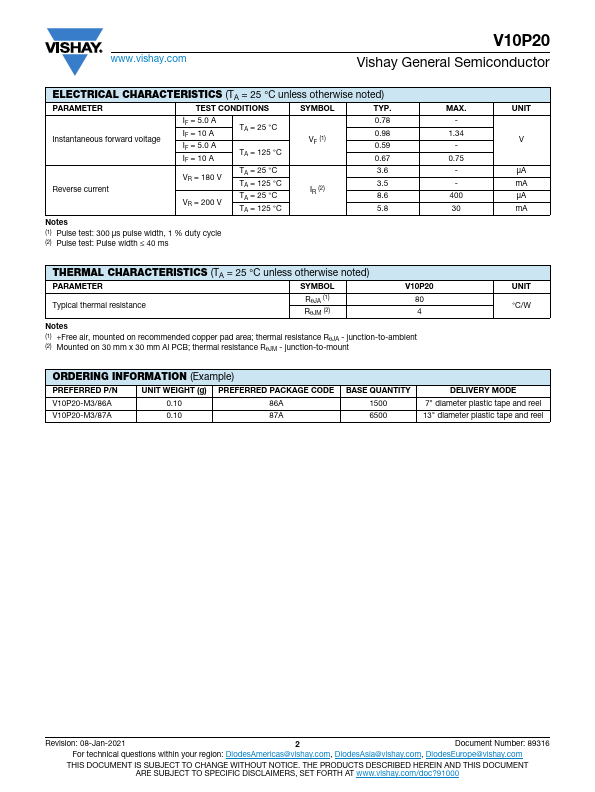

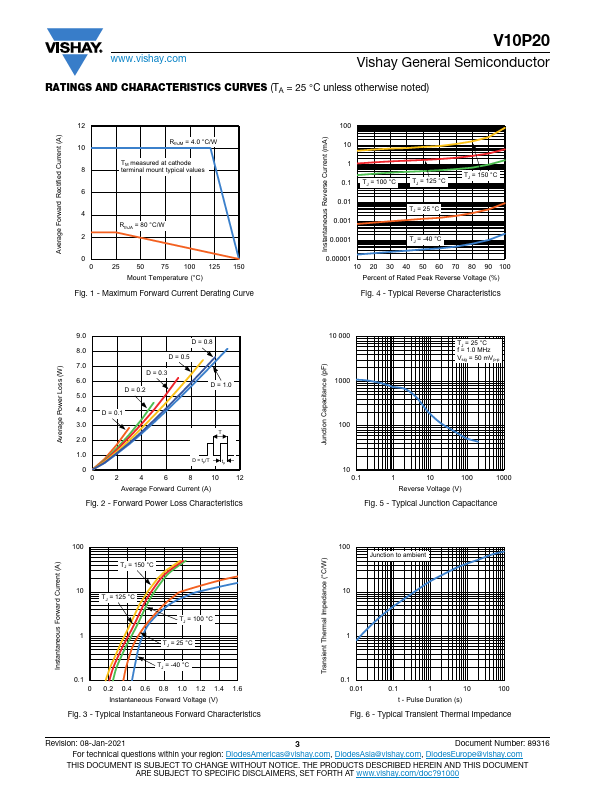

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V10P20
Manufacturer
Vishay ↗
File Size
89.67 KB
Datasheet
V10P20-Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
