V10PWL45C - Trench MOS Barrier Schottky Rectifier

Product Overview

Vishay

📥 Download Datasheet

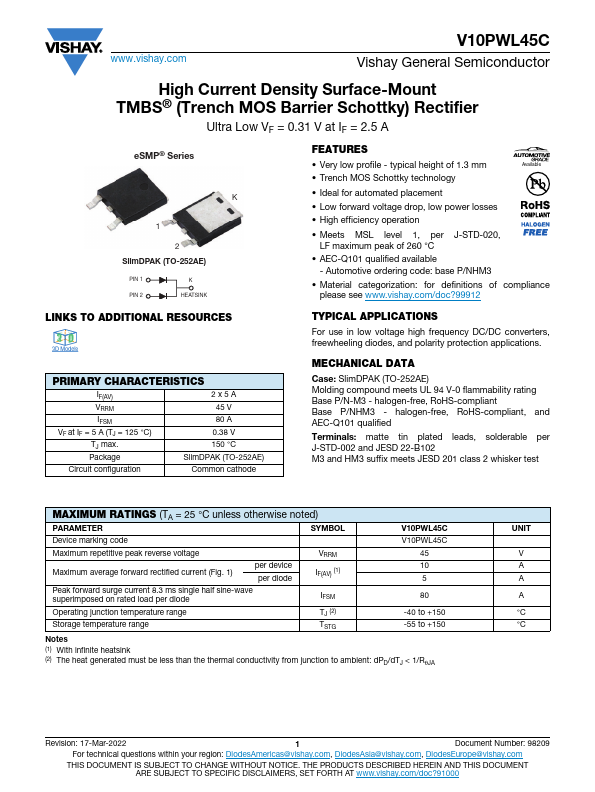

V10PWL45C Trench MOS Barrier Schottky Rectifier by Vishay - Datasheet Preview — Datasheet preview – V10PWL45C

Datasheet Details

Part number	V10PWL45C
Manufacturer	Vishay
File Size	134.02 KB
Description	Trench MOS Barrier Schottky Rectifier
Datasheet	V10PWL45C Datasheet

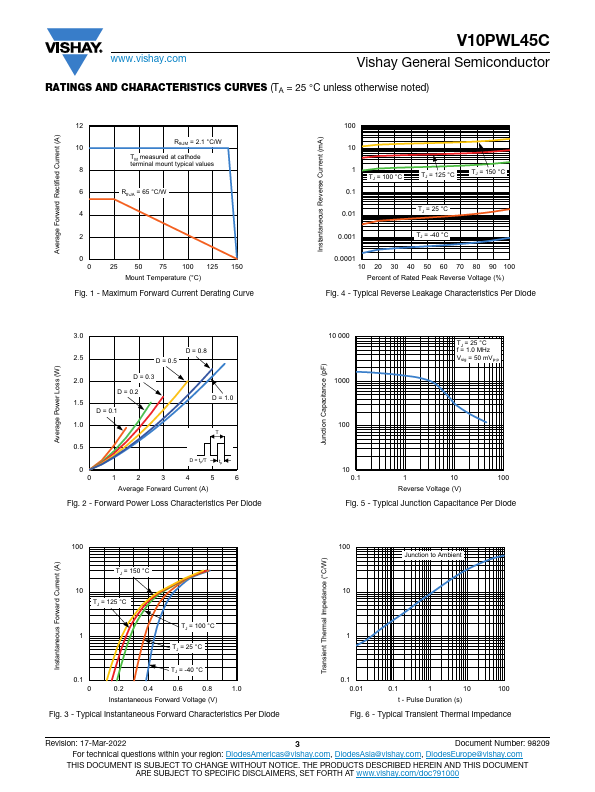

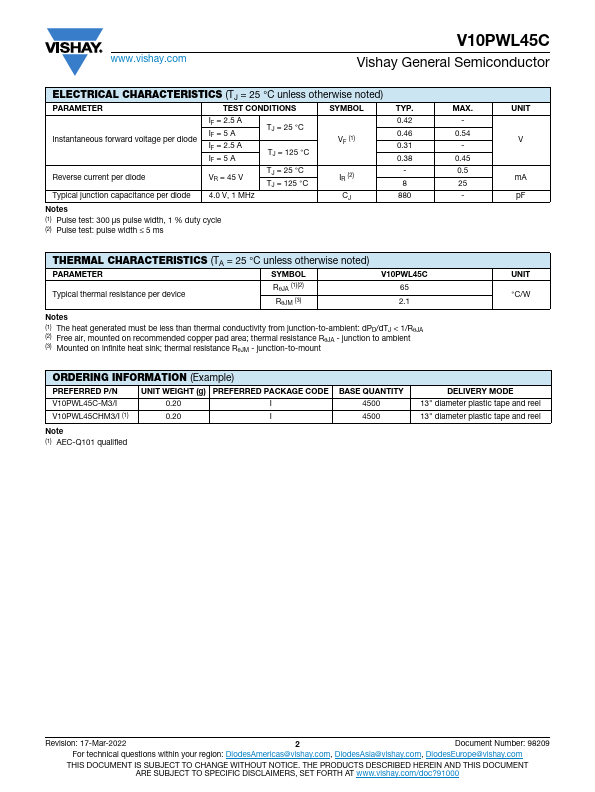

Additional preview pages of the V10PWL45C datasheet.

Product details

Features

Very low profile - typical height of 1.3 mm Available.
Trench MOS Schottky technology.
Ideal for automated placement.
Low forward voltage drop, low power losses.
High efficiency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHM3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS.
