TEMD5510FX01 - Ambient Light Sensor

TEMD5510FX01 Description

www.vishay.com TEMD5510FX01 Vishay Semiconductors Ambient Light Sensor .
TEMD5510FX01 ambient light sensor is a PIN photodiode with high photo sensitivity in a miniature surface mount device (SMD).

TEMD5510FX01 Features

* Package type: surface-mount
* Package form: top view
* Dimensions (L x W x H in mm): 5 x 4.24 x 1.12
* Radiant sensitive area (in mm2): 7.5
* AEC-Q101 qualified
* High photo sensitivity
* Adapted to human eye responsivity
* Supression

TEMD5510FX01 Applications

* Automotive sensors
* Ambient light sensors
* Backlight dimmers
* Notebooks
* Computers PRODUCT SUMMARY COMPONENT TEMD5510FX01 Note
* Test conditions see table “Basic Characteristics” Ira (μA) 1 ϕ (°) ± 65 λ0.5 (nm) 430 to 610 ORDERING INFORMATIO

📥 Download Datasheet

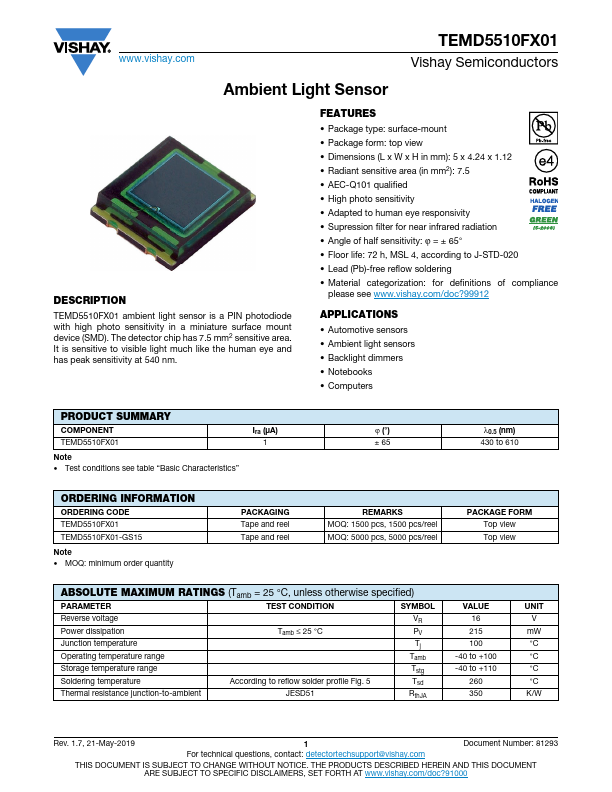

Preview of TEMD5510FX01 PDF

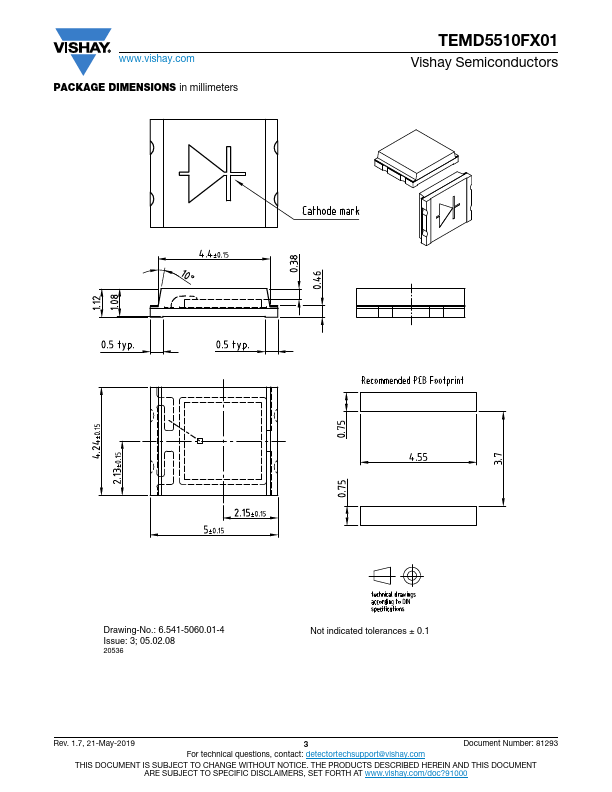

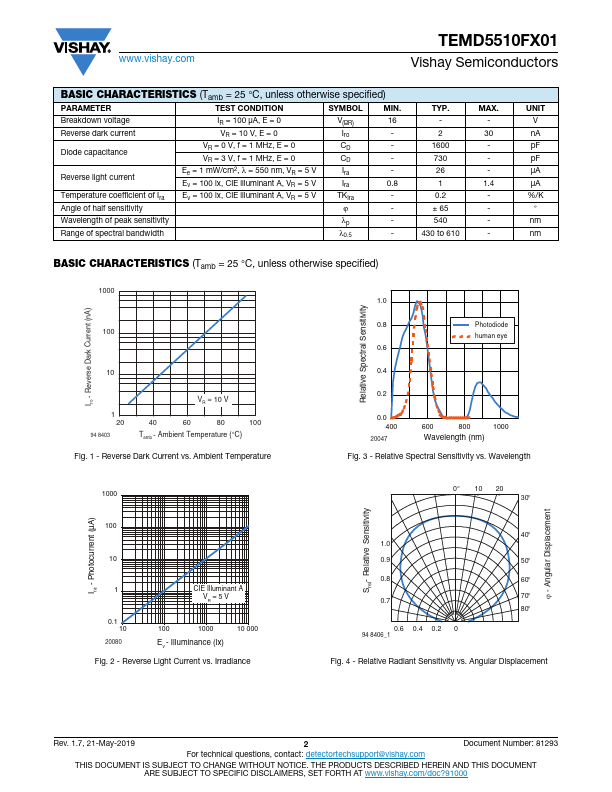

datasheet Preview Page 2 datasheet Preview Page 3
