TEMD5020X01 Silicon PIN Photodiode

TEMD5020X01 Description

www.vishay.com TEMD5020X01 Vishay Semiconductors Silicon PIN Photodiode, RoHS Compliant, Released for Lead (Pb)-free Reflow Soldering, AEC-Q101 Rele.
TEMD5020X01 is a high speed and high sensitive PIN photodiode.

TEMD5020X01 Features

* Package type: surface mount
* Package form: top view
* Dimensions (L x W x H in mm): 5 x 4.24 x 1.12
* Radiant sensitive area (in mm2): 4.4
* AEC-Q101 qualified
* High photo sensitivity
* High radiant sensitivity
* Suitable for visibl

TEMD5020X01 Applications

* High speed photo detectors PRODUCT SUMMARY COMPONENT TEMD5020X01 Ira (μA) 35 Note
* Test conditions see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE TEMD5020X01 Note
* MOQ: minimum order quantity PACKAGING Tape and reel  (deg) ± 65
* 0.1 (nm)

📥 Download Datasheet

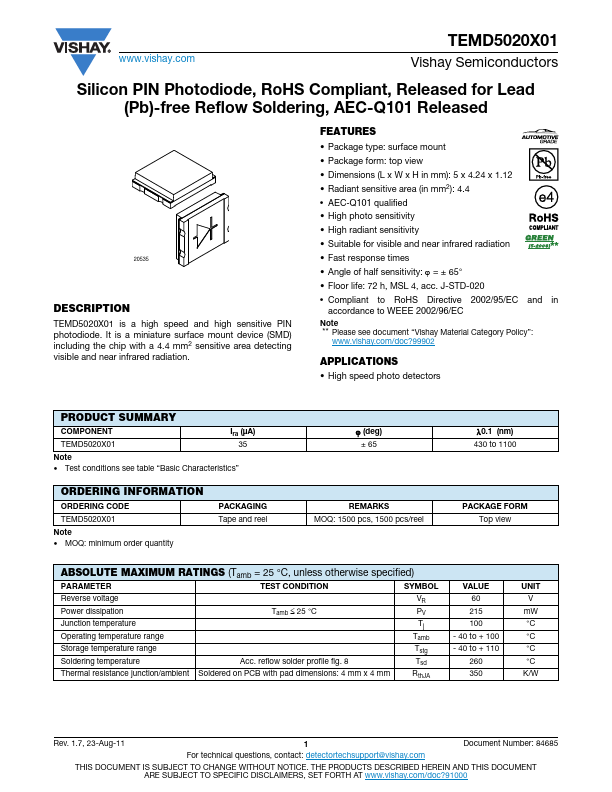

Preview of TEMD5020X01 PDF

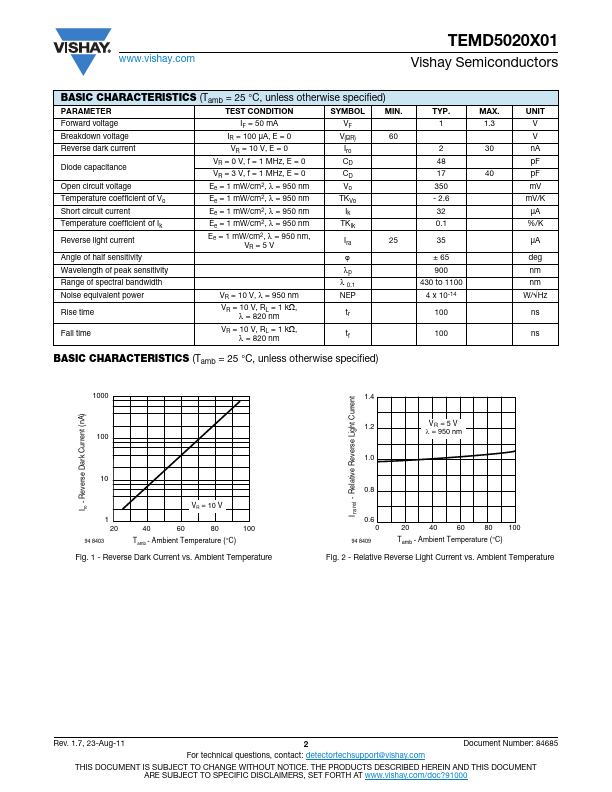

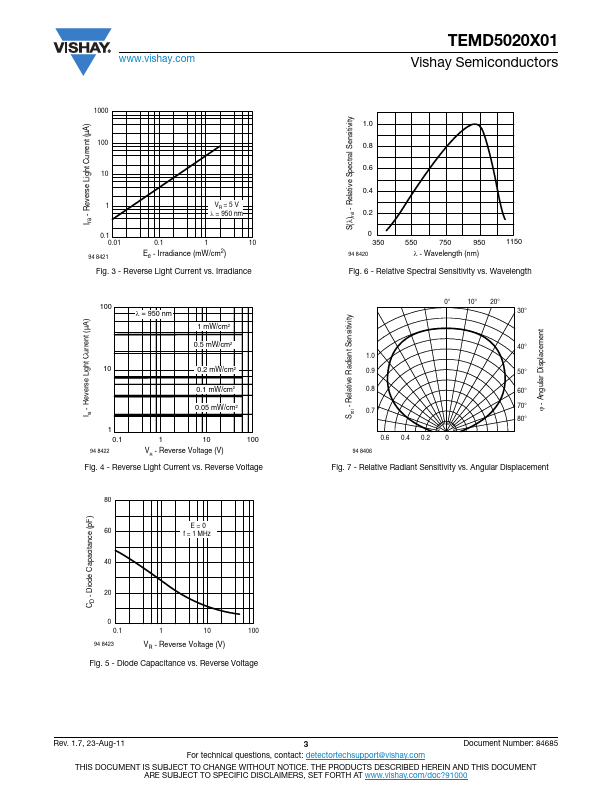

datasheet Preview Page 2 datasheet Preview Page 3
