TEMD1020, TEMD1000 Silicon PIN Photodiode

TEMD1020 Description

TEMD1000, TEMD1020, TEMD1030, TEMD1040 www.vishay.com Vishay Semiconductors Silicon PIN Photodiode, RoHS-Compliant TEMD1000 TEMD1020 TEMD1030 T.
TEMD1000 series are PIN photodiodes with high speed and high radiant sensitivity in black, surface-mount plastic packages with lens and daylight block.

TEMD1020 Features

* Package type: surface-mount
* Package form: GW, RGW, yoke, axial
* Dimensions (L x W x H in mm): 2.5 x 2 x 2.7
* Radiant sensitive area (in mm2): 0.23
* High radiant sensitivity
* Daylight blocking filter matched with 870 nm to 950 nm emitters

TEMD1020 Applications

* High speed detector for infrared radiation
* Infrared remote control and free air data transmission systems, e. g. in combination with TSMLxxxx series IR emitters PRODUCT SUMMARY COMPONENT TEMD1000 TEMD1020 TEMD1030 TEMD1040 Ira (μA) 10 10 10 10 Note
* Test conditions see

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TEMD1020, TEMD1000. Please refer to the document for exact specifications by model.

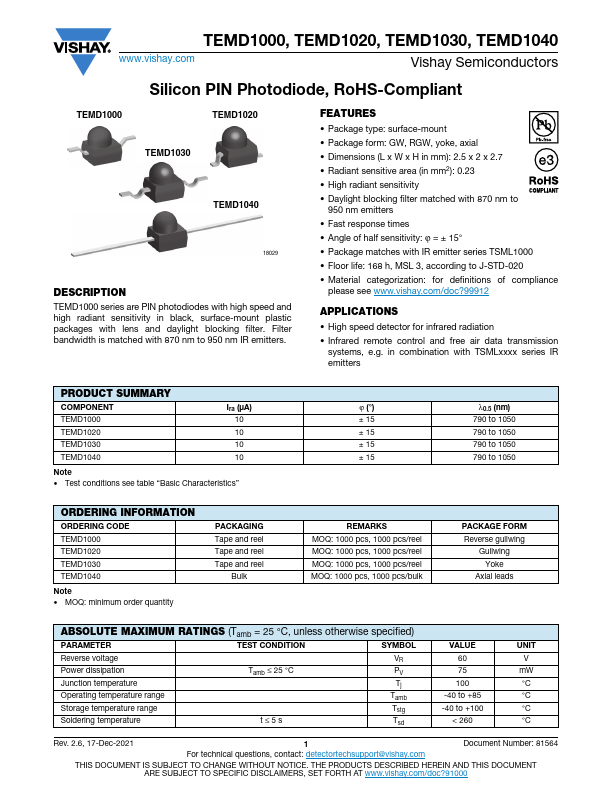

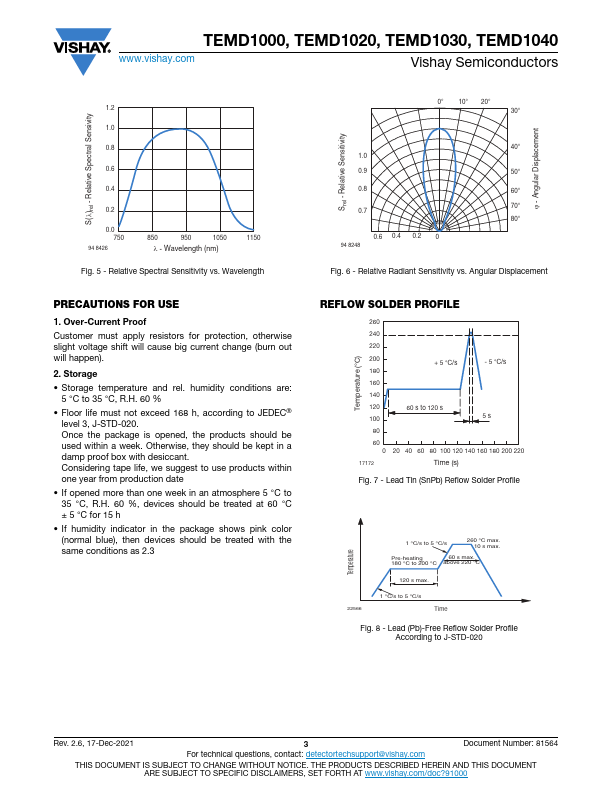

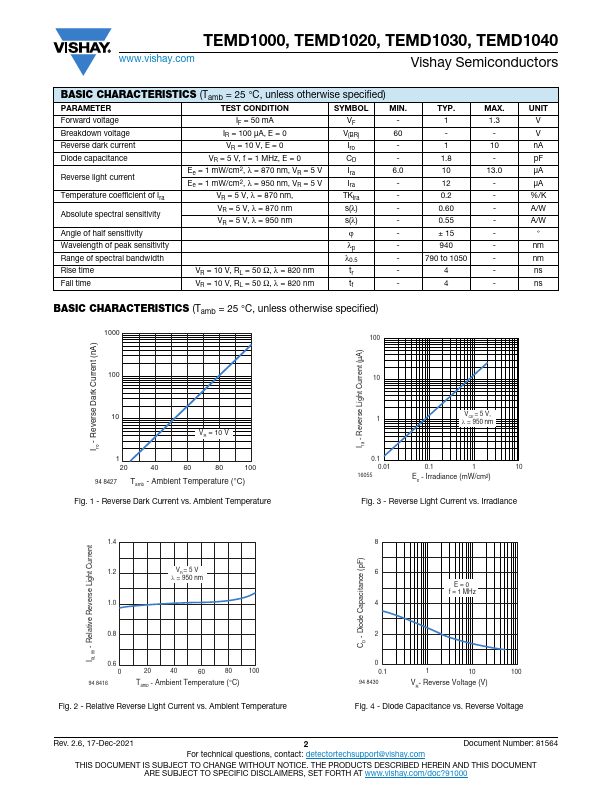

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TEMD1020, TEMD1000
Manufacturer
Vishay ↗
File Size
149.16 KB
Datasheet
TEMD1000_VishayTelefunken.pdf
Description
Silicon PIN Photodiode
Note
This datasheet PDF includes multiple part numbers: TEMD1020, TEMD1000.
Please refer to the document for exact specifications by model.
