SiC658A - 50A Integrated Power Stage

Vishay

The SiC658A by Vishay is a 50A Integrated Power Stage. Below is the official datasheet preview.

📥 Download Datasheet

SiC658A 50A Integrated Power Stage by Vishay - Datasheet Preview — Official preview page of the **SiC658A** 50A Integrated Power Stage datasheet (Vishay).

Datasheet Details

Part number	SiC658A
Manufacturer	Vishay
File Size	307.62 KB
Description	50A Integrated Power Stage
Datasheet	SiC658A-Vishay.pdf

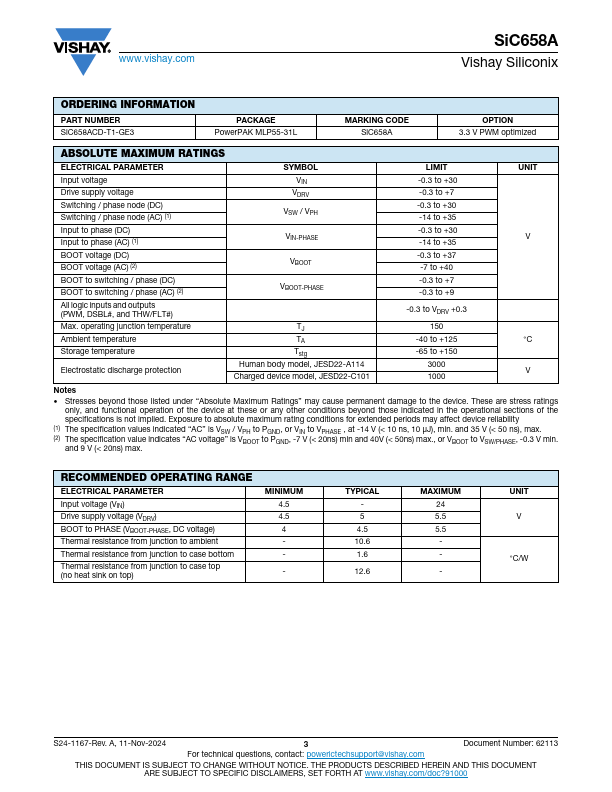

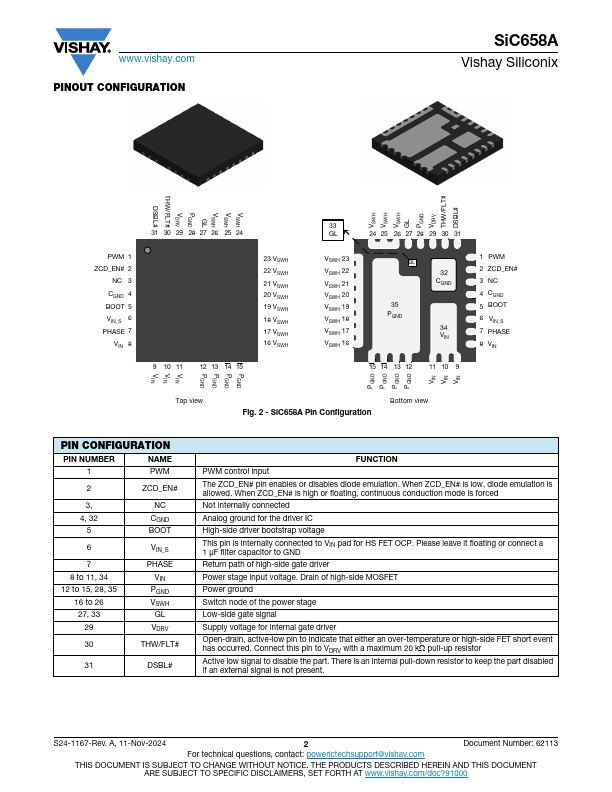

Additional preview pages of the SiC658A datasheet.

SiC658A Product details

Description

The SiC658A is an integrated power stage solution optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance.

Features

high current driving capability, adaptive dead-time control, an integrated bootstrap switch, a temperature sensor to measure the junction temperature and protects against damage, and zero current detection to improve light load efficiency. The drivers are also compatible with a wide range of PWM controllers and supports tri-state PWM, 3.3 V logic. .
