SIC632A, SIC632 - Integrated Power Stage

Vishay

The SIC632A by Vishay is a Integrated Power Stage. Below is the official datasheet preview.

📥 Download Datasheet

SIC632A Integrated Power Stage by Vishay - Datasheet Preview — Official preview page of the **SIC632A** Integrated Power Stage datasheet (Vishay).

Datasheet Details

Part number	SIC632A, SIC632
Manufacturer	Vishay
File Size	318.87 KB
Description	Integrated Power Stage
Datasheet	SIC632-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SIC632A, SIC632. Please refer to the document for exact specifications by model.

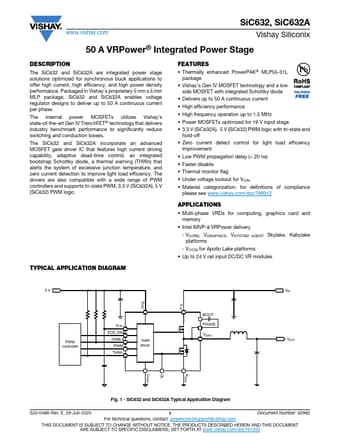

Additional preview pages of the SIC632A datasheet.

SIC632A Product details

Description

The SiC632 and SiC632A are integrated power stage solutions optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance.

Features

high current driving capability, adaptive dead-time control, an integrated bootstrap Schottky diode, a thermal warning (THWn) that alerts the system of excessive junction temperature, and zero current detection to improve light load efficiency. The drivers are also compatible with a wide range of PWM controllers and supports tri-state PWM, 3.3 V (SiC632A), 5 V (SiC632) PWM logic.
