SiC629 - 80A Integrated Power Stage

Vishay

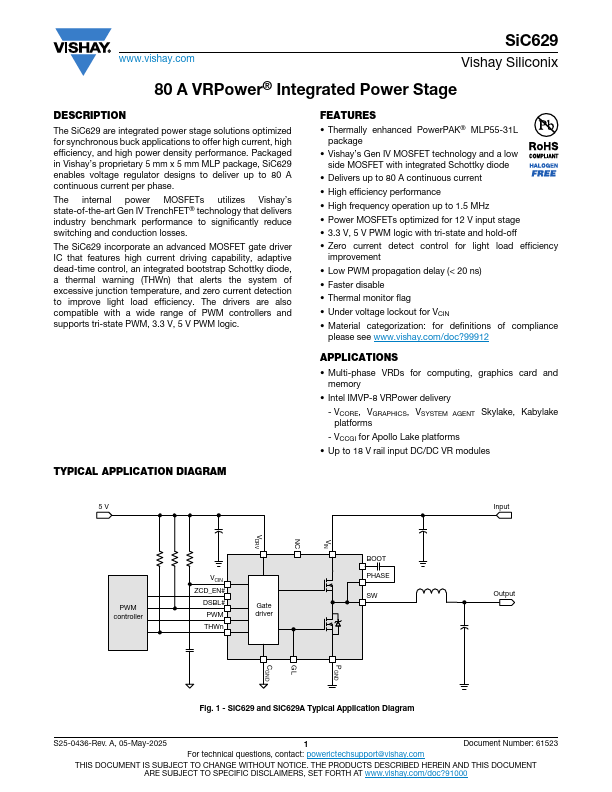

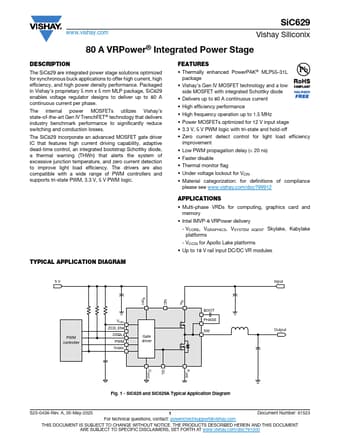

The SiC629 by Vishay is a 80A Integrated Power Stage. Below is the official datasheet preview.

📥 Download Datasheet

SiC629 80A Integrated Power Stage by Vishay - Datasheet Preview — Official preview page of the **SiC629** 80A Integrated Power Stage datasheet (Vishay).

Datasheet Details

Part number	SiC629
Manufacturer	Vishay
File Size	228.92 KB
Description	80A Integrated Power Stage
Datasheet	SiC629-Vishay.pdf

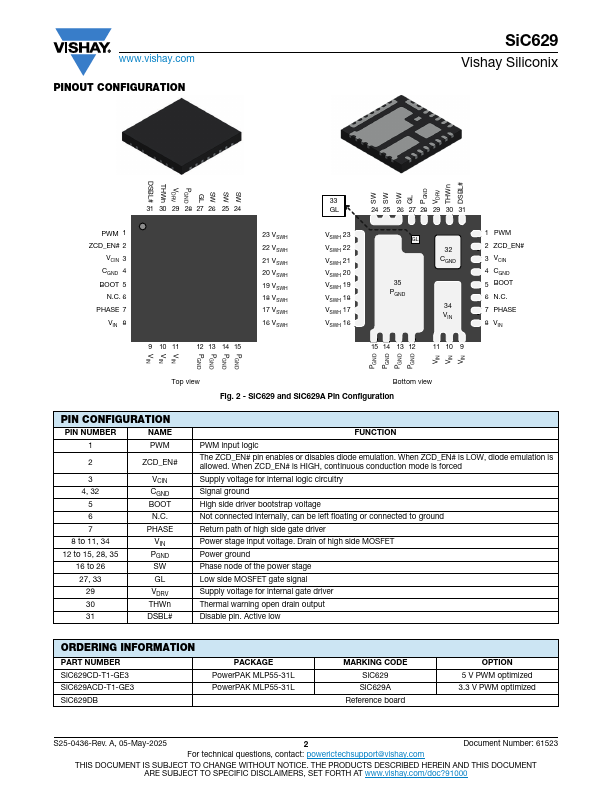

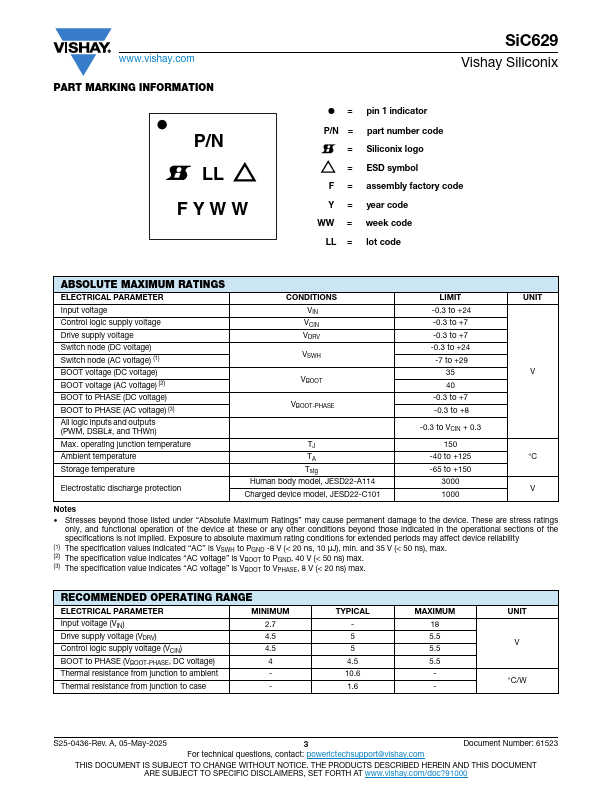

Additional preview pages of the SiC629 datasheet.

SiC629 Product details

Description

The SiC629 are integrated power stage solutions optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance.

Features

high current driving capability, adaptive dead-time control, an integrated bootstrap Schottky diode, a thermal warning (THWn) that alerts the system of excessive junction temperature, and zero current detection to improve light load efficiency. The drivers are also compatible with a wide range of PWM controllers and supports tri-state PWM, 3.3 V, 5 V PWM logic.
