SUP50020EL N-Channel 60-V (D-S) MOSFET

SUP50020EL Description

www.vishay.com SUP50020EL Vishay Siliconix N-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) MAX.0.0023 at VGS = 10 V 60 0.0028 a.

SUP50020EL Features

* TrenchFET® power MOSFET
* Maximum 175 °C junction temperature
* Qgd/Qgs ratio < 0.25
* Operable with logic-level gate drive
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 APPLIC

SUP50020EL Applications

* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools
* Motor drive switch
* DC/AC inverter
* Battery management G D S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL

📥 Download Datasheet

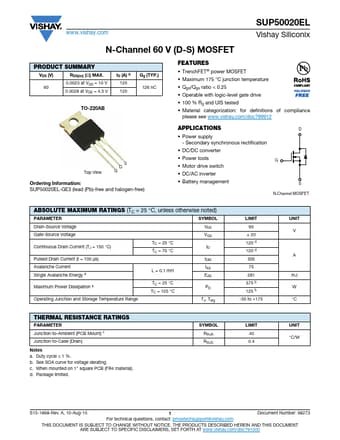

Preview of SUP50020EL PDF
datasheet Preview Page 2 datasheet Preview Page 3
