SUP50010EL N-Channel MOSFET

SUP50010EL Description

www.vishay.com SUP50010EL Vishay Siliconix N-Channel 60 V (D-S) MOSFET TO-220AB Top View S D G PRODUCT SUMMARY VDS (V) RDS(on) max.() at VGS =.

SUP50010EL Features

* TrenchFET® Gen IV power MOSFET
* Maximum 175 °C junction temperature
* Very low Qgd reduces power loss from passing through Vplateau
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 APPLI

SUP50010EL Applications

* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools
* Motor drive switch
* DC/AC inverter
* Battery management
* OR-ing / e-fuse D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-

📥 Download Datasheet

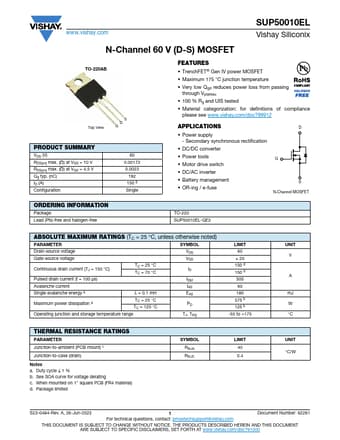

Preview of SUP50010EL PDF
datasheet Preview Page 2 datasheet Preview Page 3
