SRP100D, SRP100A Fast Switching Plastic Rectifier

SRP100D Description

SRP100A, SRP100B, SRP100D, SRP100G, SRP100J, SRP100K www.vishay.com Vishay General Semiconductor Fast Switching Plastic Rectifier DO-204AL (DO-41).

SRP100D Features

* Fast switching for high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please see www. vishay. com/doc

SRP100D Applications

* For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer, and telecommunication. Note
* These devices are not AEC-Q101 qualified. MECHANICAL DATA Case: DO-204AL, molded epoxy body Molding compound meets UL 94 V-0 flammability rating

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SRP100D, SRP100A. Please refer to the document for exact specifications by model.

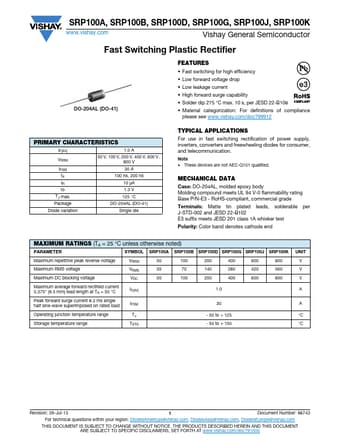

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRP100D, SRP100A
Manufacturer
Vishay ↗
File Size
70.07 KB
Datasheet
SRP100A-Vishay.pdf
Description
Fast Switching Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: SRP100D, SRP100A.
Please refer to the document for exact specifications by model.
