SRP100A Fast Switching Plastic Rectifier

SRP100A Description

SRP100A, SRP100B, SRP100D, SRP100G, SRP100J, SRP100K www.vishay.com Vishay General Semiconductor Fast Switching Plastic Rectifier DO-204AL (DO-41).

SRP100A Features

* Fast switching for high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please see www. vishay. com/doc

SRP100A Applications

* For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer, and telecommunication. Note
* These devices are not AEC-Q101 qualified. MECHANICAL DATA Case: DO-204AL, molded epoxy body Molding compound meets UL 94 V-0 flammability rating

📥 Download Datasheet

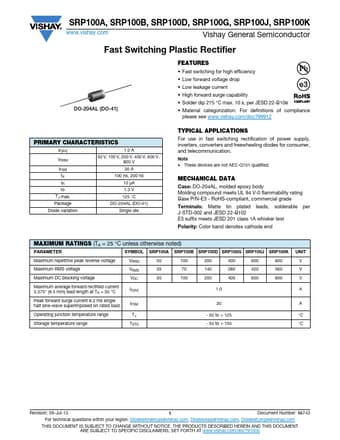

Preview of SRP100A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRP100A
Manufacturer
Vishay ↗
File Size
70.07 KB
Datasheet
SRP100A-Vishay.pdf
Description
Fast Switching Plastic Rectifier
