SRP1245A Shielded Power Inductors

SRP1245A Description

*Ro *AH *HESACCL-OQOM2G0EP0NLICFAORNMETEP, L&IANT AUTOMOTIVE GRADE R 4173 1 8 .

SRP1245A Features

* Shielded construction
* Carbonyl powder core
* High saturation current
* Inductance range: 0.20 to 22 µH
* AEC-Q200 compliant
* RoHS compliant
* and halogen free
* Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES

SRP1245A Applications

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. General Specifications Test Voltage 1.0 V Test Frequency 100 KHz Operating Temperature -55 °C to +150 °C (Te

📥 Download Datasheet

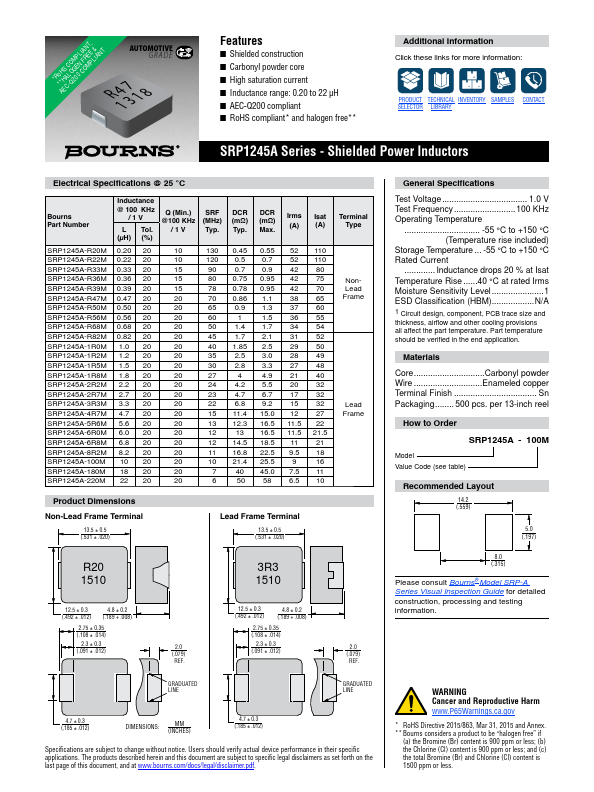

Preview of SRP1245A PDF

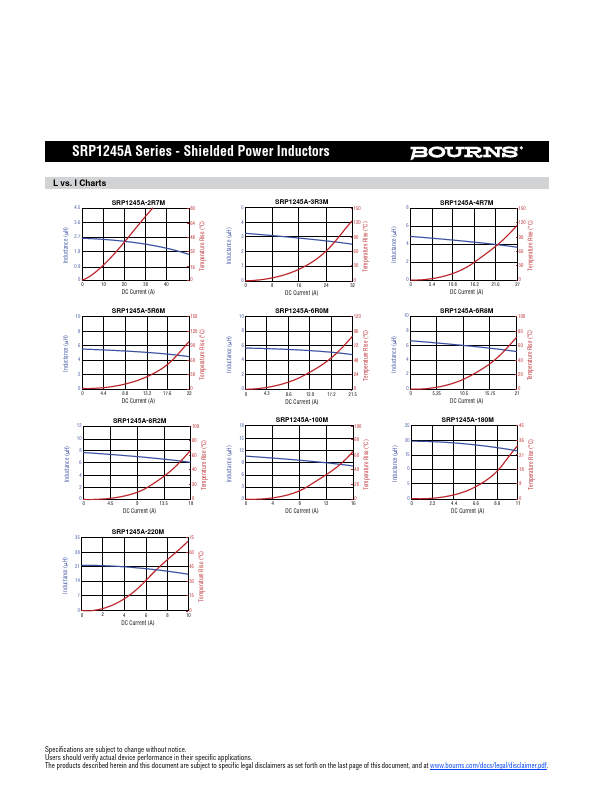

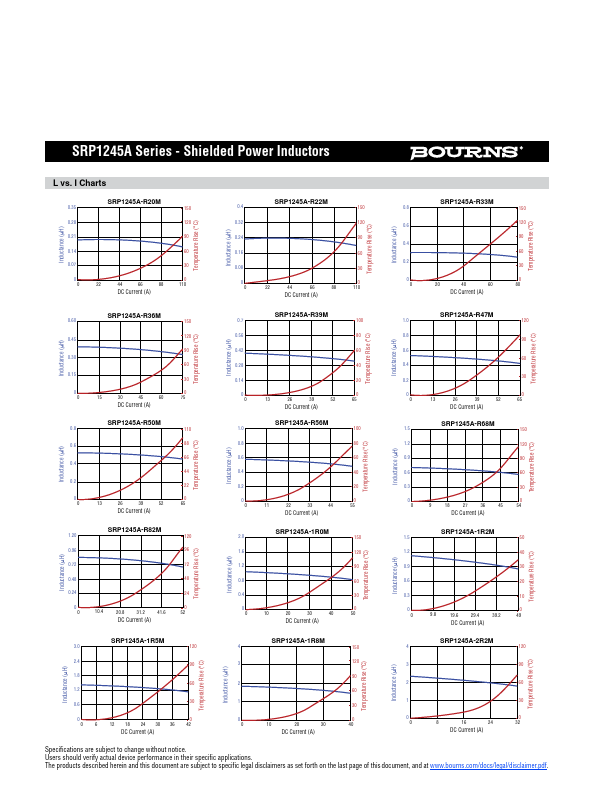

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SRP1245A
Manufacturer
Bourns
File Size
287.10 KB
Datasheet
SRP1245A-Bourns.pdf
Description
Shielded Power Inductors
