RH50, RH5 Datasheet - Vishay

RH50 Heatsink Encased Wirewound Power Resistors

RH50 Features

* 5 W to 50 W at 25 °C

* NF C 83-210

* According to CECC 40 203

* High stability < 0.05 % year

* Low temperature coefficient typically ± 15 ppm/°C

* Wide range of values from 0.006 Ω to 130 kΩ

* Termination = Sn/Ag/Cu

* Material categor

RH5-Vishay.pdf

This datasheet PDF includes multiple part numbers: RH50, RH5. Please refer to the document for exact specifications by model.

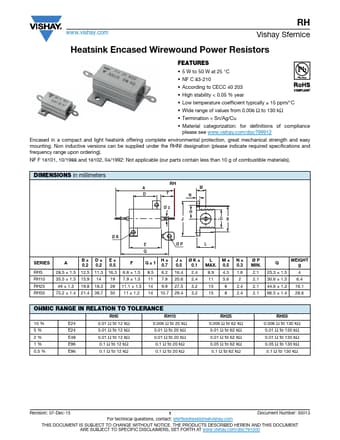

RH50 Datasheet Preview Page 2 RH50 Datasheet Preview Page 3

Datasheet Details

Part number:

RH50, RH5

Manufacturer:

Vishay ↗

File Size:

117.88 KB

Description:

Heatsink encased wirewound power resistors.

Note:

This datasheet PDF includes multiple part numbers: RH50, RH5.
Please refer to the document for exact specifications by model.
