RH500-P Coreless Coil Current Transducer RH 100~1000-P

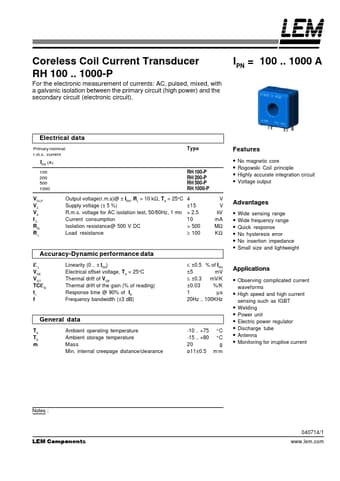

📥 Download Datasheet  Datasheet Preview Page 1

Description

Coreless Coil Current Transducer RH 100 ..1000-P For the electronic measurement of currents: AC, pulsed, mixed, with a galvanic isolation between the.

📥 Download Datasheet

Preview of RH500-P PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
RH500-P
Manufacturer
LEM
File Size
42.11 KB
Datasheet
RH500-P_LEM.pdf
Description
Coreless Coil Current Transducer RH 100~1000-P

Features

* V V kV mA MΩ KΩ No magnetic core Rogowski Coil principle Highly accurate integration circuit Voltage output IPN (A) 100 200 500 1000 RH 100-P RH 200-P RH 500-P RH 1000-P VOUT VC Vd IC RIS RL Output voltage(r. m. s)@ ± IPN, RL = 10 kΩ, TA = 25°C Supply voltage

Applications

* Observing complicated current waveforms
* High speed and high current
* sensing such as IGBT Welding Power unit Electric power regulator Discharge tube Antenna Monitoring for irruptive current General data TA TS m Ambient
