RH500-S - Coreless Coil Current Transducer RH 100~1000-S

RH500-S Description

Coreless Coil Current Transducer RH 100 ..1000-S For the electronic measurement of currents: AC, pulsed, mixed, with a galvanic isolation between the.

RH500-S Features

* V V kV mA MΩ KΩ No magnetic core Rogowski Coil principle Highly accurate integration circuit Voltage output IPN (A) 100 200 500 1000 RH 100-S RH 200-S RH 500-S RH 1000-S VOUT VC Vd IC RIS RL Output voltage(r. m. s) @ ± IPN, RL = 10 kΩ, TA = 25°C Supply voltag

RH500-S Applications

* Observing complicated current waveforms
* High speed and high current
* sensing such as IGBT Welding Power unit Electric power regulator Discharge tube Antenna Monitoring for irruptive current General data TA TS m Ambient

📥 Download Datasheet

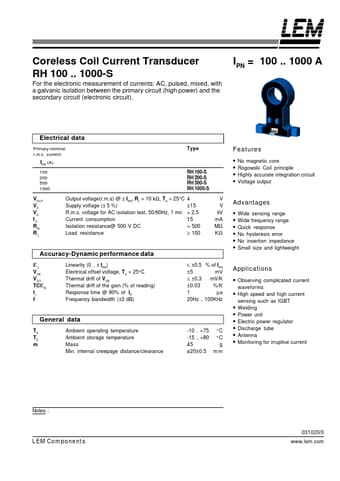

Preview of RH500-S PDF
