PAT1505, PAT0402 - Precision Automotive Thin Film Chip Resistor

Vishay

The PAT1505 by Vishay is a Precision Automotive Thin Film Chip Resistor. Below is the official datasheet preview.

📥 Download Datasheet

PAT1505 Precision Automotive Thin Film Chip Resistor by Vishay - Datasheet Preview — Official preview page of the PAT1505 Precision Automotive Thin Film Chip Resistor datasheet (Vishay).

Datasheet Details

Part number	PAT1505, PAT0402
Manufacturer	Vishay
File Size	105.33 KB
Description	Precision Automotive Thin Film Chip Resistor
Datasheet	PAT0402-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: PAT1505, PAT0402. Please refer to the document for exact specifications by model.

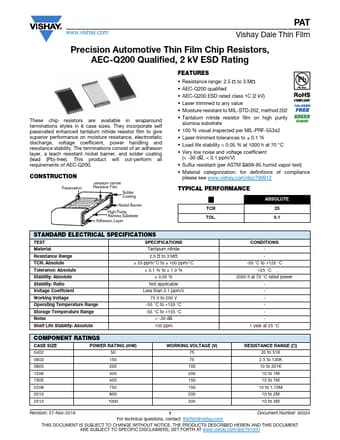

Additional preview pages of the PAT1505 datasheet.

PAT1505 Product details

Features

Resistance range: 2.5  to 3 M.
AEC-Q200 qualified.
AEC-Q200 ESD rated class 1C (2 kV).
Laser trimmed to any value.
Moisture resistant to MIL-STD-202, method 202.
Tantalum nitride resistor film on high purity alumina substrate.
100 % visual inspected per MIL-PRF-55342.
Laser-trimmed tolerances to ± 0.1 %.
Load life stability < 0.05 % at 1000 h at 70 °C.
Very low noise and voltage coefficient (< -30 dB,.
