PAT - Precision Automotive Thin Film Chip Resistors

Vishay Siliconix

📥 Download Datasheet

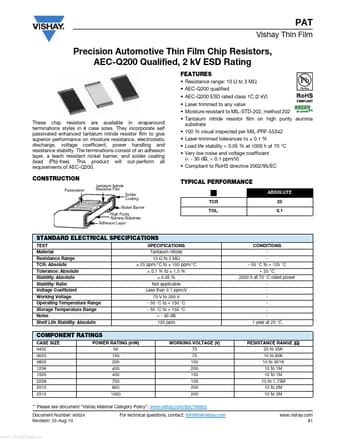

PAT Datasheet Preview — Preview of PAT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PAT
Manufacturer	Vishay Siliconix
File Size	107.02 KB
Description	Precision Automotive Thin Film Chip Resistors
Datasheet	PAT_VishaySiliconix.pdf

PAT Product details

Features

Resistance range: 10 Ω to 3 MΩ.
AEC-Q200 qualified.
AEC-Q200 ESD rated class 1C (2 kV).
Laser trimmed to any value.
Moisture resistant to MIL-STD-202, method 202.
Tantalum nitride resistor film on high purity alumina substrate.
100 % visual inspected per MIL-PRF-55342.
Laser-trimmed tolerances to ± 0.1 %.
Load life stability < 0.05 % at 1000 h at 70 °C.
Very low noise and voltage coefficient (< - 30 dB, <.
