PAT0603, PAT0402 - Precision Automotive Thin Film Chip Resistor

Vishay

📥 Download Datasheet

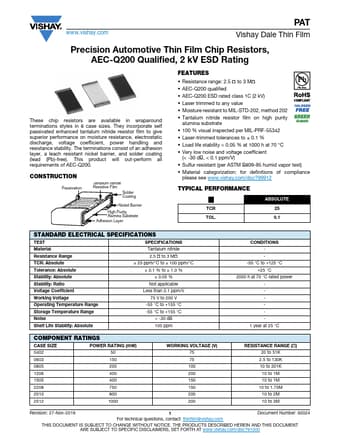

PAT0603 Datasheet Preview — This datasheet PDF includes multiple part numbers: PAT0603, PAT0402. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PAT0603, PAT0402
Manufacturer	Vishay
File Size	105.33 KB
Description	Precision Automotive Thin Film Chip Resistor
Datasheet	PAT0402-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: PAT0603, PAT0402. Please refer to the document for exact specifications by model.

PAT0603 Product details

Features

Resistance range: 2.5  to 3 M.
AEC-Q200 qualified.
AEC-Q200 ESD rated class 1C (2 kV).
Laser trimmed to any value.
Moisture resistant to MIL-STD-202, method 202.
Tantalum nitride resistor film on high purity alumina substrate.
100 % visual inspected per MIL-PRF-55342.
Laser-trimmed tolerances to ± 0.1 %.
Load life stability < 0.05 % at 1000 h at 70 °C.
Very low noise and voltage coefficient (< -30 dB,.
