IHLP5050FD-01 - Commercial Inductors

Vishay

📥 Download Datasheet

IHLP5050FD-01 Datasheet Preview — Preview of IHLP5050FD-01 PDF

Datasheet Details

Part number	IHLP5050FD-01
Manufacturer	Vishay
File Size	140.41 KB
Description	Commercial Inductors
Datasheet	IHLP5050FD-01-Vishay.pdf

IHLP5050FD-01 Product details

Description

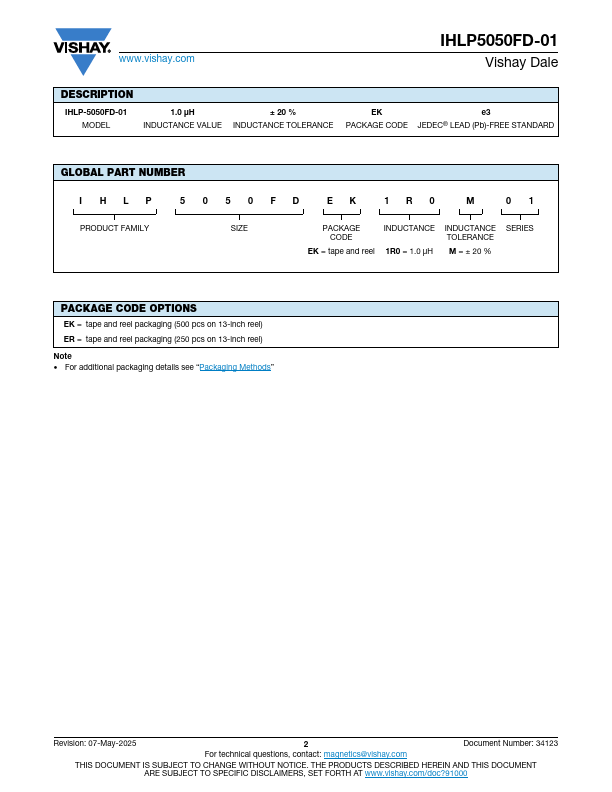

IHLP-5050FD-01 MODEL 1.0 μH ± 20 % EK e3 INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 5 0 5 0FD EK 1R0 M 01 PRODUCT FAMILY SIZE PACKAGE CODE EK = tape and reel INDUCTANCE 1R0 = 1.0 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES PACKAGE CODE OPTIONS EK = tape and reel packaging (500 pcs on 13-inch reel) ER = tape and reel packaging (250 pcs on 13-inch reel) Note For additional packaging details see “Packaging M

Features

Shielded construction.
Frequency range up to 5.0 MHz.
Lowest DCR/μH, in this package size.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
