IHLP-0806AB-5A - Automotive Power Inductors

Vishay

📥 Download Datasheet

IHLP-0806AB-5A Datasheet Preview — Preview of IHLP-0806AB-5A PDF

Datasheet Details

Part number	IHLP-0806AB-5A
Manufacturer	Vishay
File Size	81.79 KB
Description	Automotive Power Inductors
Datasheet	IHLP-0806AB-5A-Vishay.pdf

IHLP-0806AB-5A Product details

Description

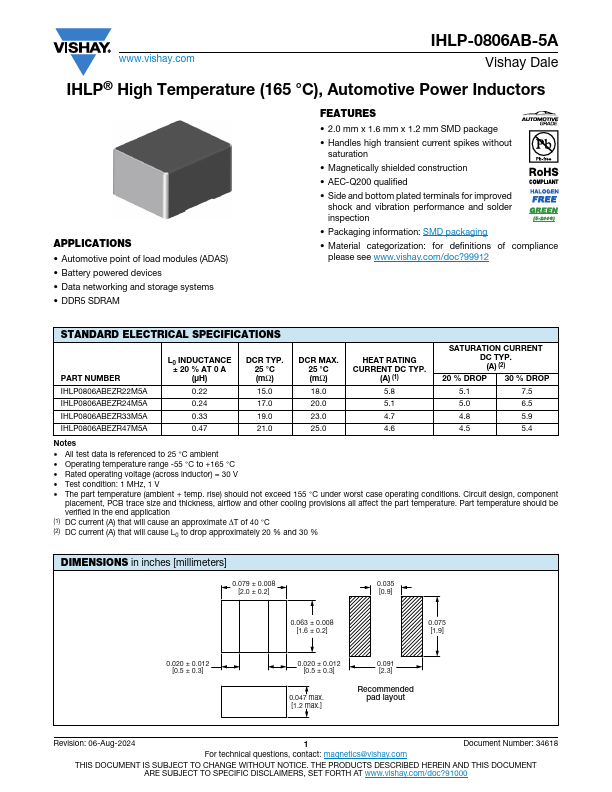

IHLP-0806AB-5A 0.24 μH ± 20 % MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE EZ e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 0 8 0 6AB EZ R2 4 M 5A PRODUCT FAMILY SIZE PACKAGE CODE EZ = tape and reel 3000 pcs/reel INDUCTANCE VALUE R24 = 0.24 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES TEMPERATURE (°C) PERFORMANCE GRAPHS INDUCTANCE (µH) 0.22 µH 0.220 100 0.176 L 80 0.132 60 0.088 0.044 40 ΔT °C 20 0.000 0 0 1 2 3 4 5 6 7 8 9 10 DC CURREN

Features

2.0 mm x 1.6 mm x 1.2 mm SMD package.
Handles high transient current spikes without saturation.
Magnetically shielded construction.
AEC-Q200 qualified.
Side and bottom plated terminals for improved shock and vibration performance and solder inspection.
Packaging information: SMD packaging.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
