IHLP-1212BZ-A1 - Automotive Inductors

Vishay

📥 Download Datasheet

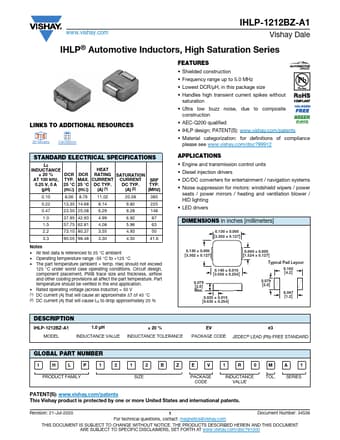

IHLP-1212BZ-A1 Datasheet Preview — Preview of IHLP-1212BZ-A1 PDF

Datasheet Details

Part number	IHLP-1212BZ-A1
Manufacturer	Vishay
File Size	429.02 KB
Description	Automotive Inductors
Datasheet	IHLP-1212BZ-A1-Vishay.pdf

IHLP-1212BZ-A1 Product details

Description

IHLP-1212BZ-A1 1.0 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EV e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 1 2 1 2 B Z E V 1 R 0 M A 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.SERIES PATENT(S): www.vishay.com/patents This Vishay product is protected by one or more United States and international patents.Revision: 21-Jul-2020 1 Document Number: 34536 For technical questions, contact: magnetics@vishay.co

Features

Shielded construction.
Frequency range up to 5.0 MHz.
Lowest DCR/μH, in this package size.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.
AEC-Q200 qualified.
IHLP design; PATENT(S): www. vishay. com/patents.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
