IHLP5050FD-0P - Commercial Inductors

Vishay

📥 Download Datasheet

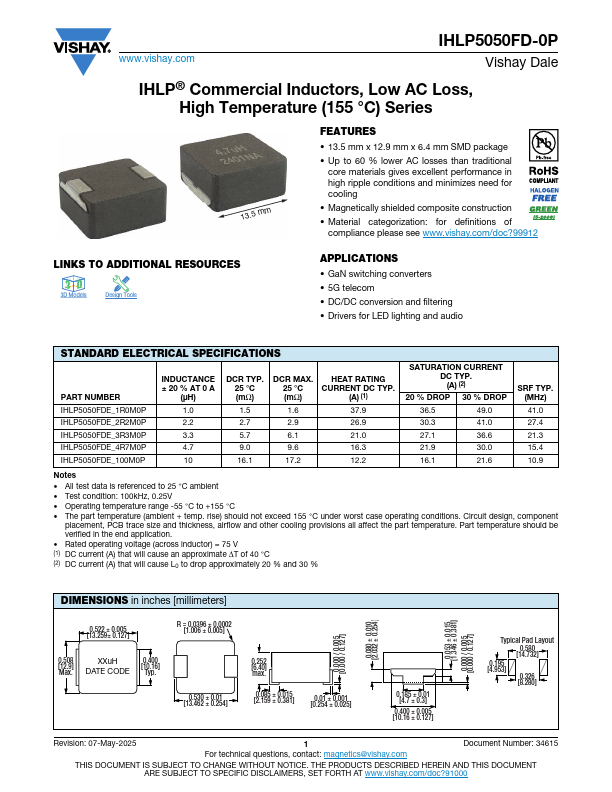

IHLP5050FD-0P Datasheet Preview — Preview of IHLP5050FD-0P PDF

Datasheet Details

Part number	IHLP5050FD-0P
Manufacturer	Vishay
File Size	392.51 KB
Description	Commercial Inductors
Datasheet	IHLP5050FD-0P-Vishay.pdf

IHLP5050FD-0P Product details

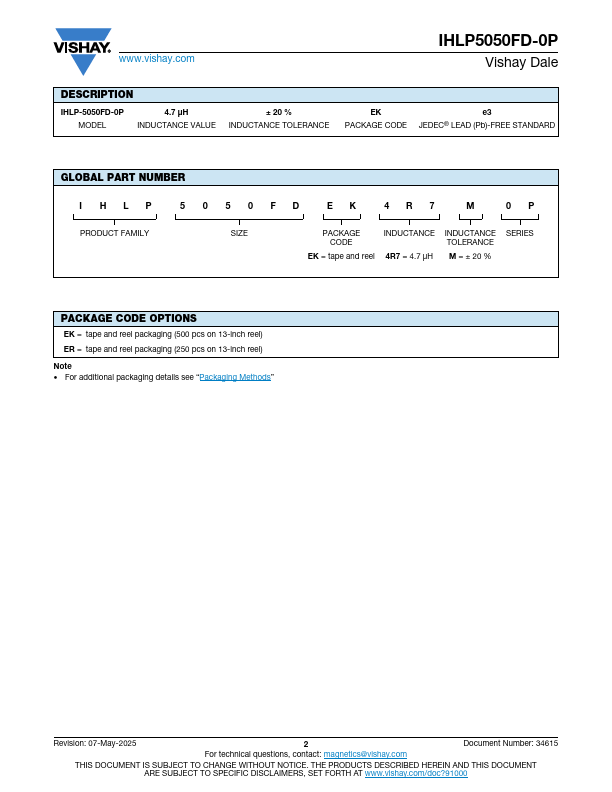

Description

IHLP-5050FD-0P 4.7 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EK e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 5 0 5 0FD EK 4R7 M 0P PRODUCT FAMILY SIZE PACKAGE CODE EK = tape and reel INDUCTANCE 4R7 = 4.7 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES PACKAGE CODE OPTIONS EK = tape and reel packaging (500 pcs on 13-inch reel) ER = tape and reel packaging (250 pcs on 13-inch reel) Note For additional packaging details see “Packaging

Features

13.5 mm x 12.9 mm x 6.4 mm SMD package.
Up to 60 % lower AC losses than traditional core materials gives excellent performance in high ripple conditions and minimizes need for cooling.
Magnetically shielded composite construction.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
