IHLL-0806AZ-1Z - Commercial Power Inductor

Vishay

📥 Download Datasheet

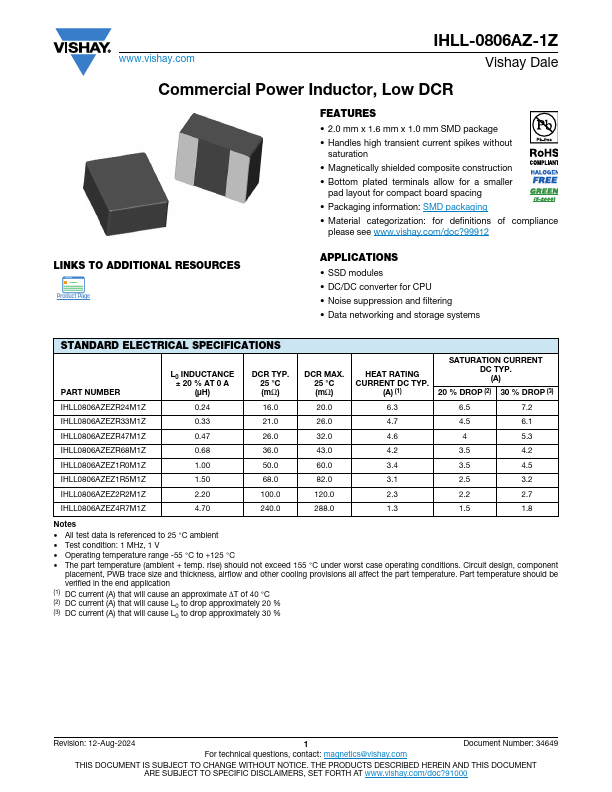

IHLL-0806AZ-1Z Datasheet Preview — Preview of IHLL-0806AZ-1Z PDF

Datasheet Details

Part number	IHLL-0806AZ-1Z
Manufacturer	Vishay
File Size	86.13 KB
Description	Commercial Power Inductor
Datasheet	IHLL-0806AZ-1Z-Vishay.pdf

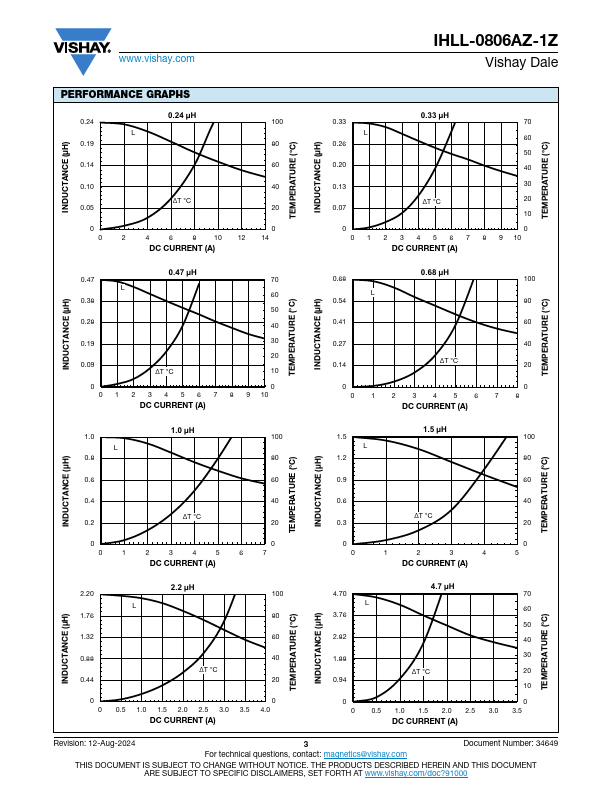

IHLL-0806AZ-1Z Product details

Description

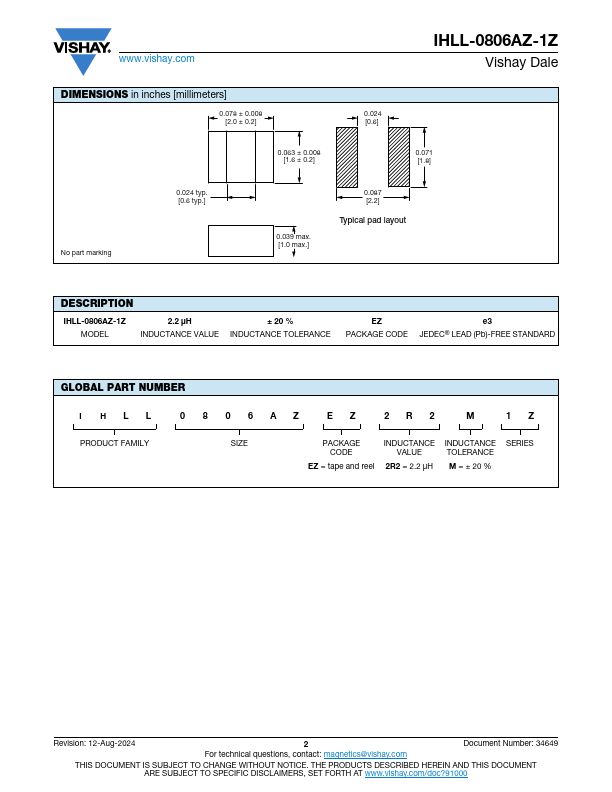

IHLL-0806AZ-1Z MODEL 2.2 μH ± 20 % INDUCTANCE VALUE INDUCTANCE TOLERANCE EZ e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLL 0 8 0 6AZ EZ 2R2 M 1Z PRODUCT FAMILY SIZE PACKAGE CODE EZ = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES Revision: 12-Aug-2024 2 Document Number: 34649 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN A

Features

2.0 mm x 1.6 mm x 1.0 mm SMD package.
Handles high transient current spikes without saturation.
Magnetically shielded composite construction.
Bottom plated terminals allow for a smaller pad layout for compact board spacing.
Packaging information: SMD packaging.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
