IHLD2525GG-A1 - Automotive High Current Dual Inductor

Vishay

📥 Download Datasheet

IHLD2525GG-A1 Datasheet Preview — Preview of IHLD2525GG-A1 PDF

Datasheet Details

Part number	IHLD2525GG-A1
Manufacturer	Vishay
File Size	360.84 KB
Description	Automotive High Current Dual Inductor
Datasheet	IHLD2525GG-A1-Vishay.pdf

IHLD2525GG-A1 Product details

Description

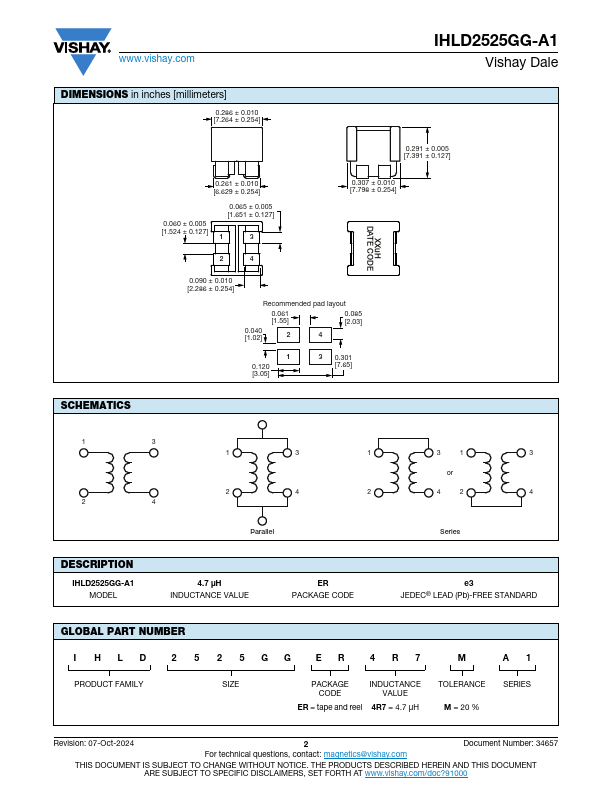

IHLD2525GG-A1 MODEL 4.7 μH INDUCTANCE VALUE ER PACKAGE CODE 3 1 3 or 4 2 4 Series e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLD 2 5 2 5 GG ER 4R7 M A1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE ER = tape and reel 4R7 = 4.7 μH TOLERANCE M = 20 % SERIES Revision: 07-Oct-2024 2 Document Number: 34657 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUME

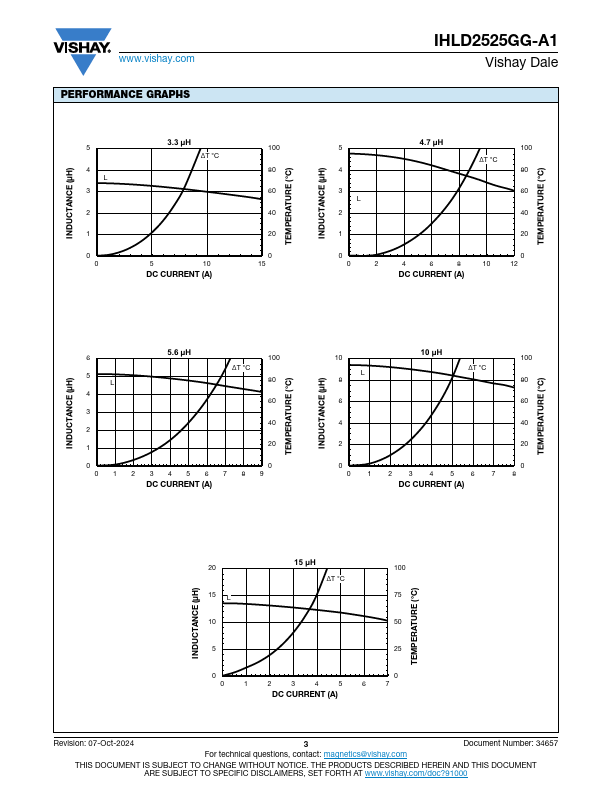

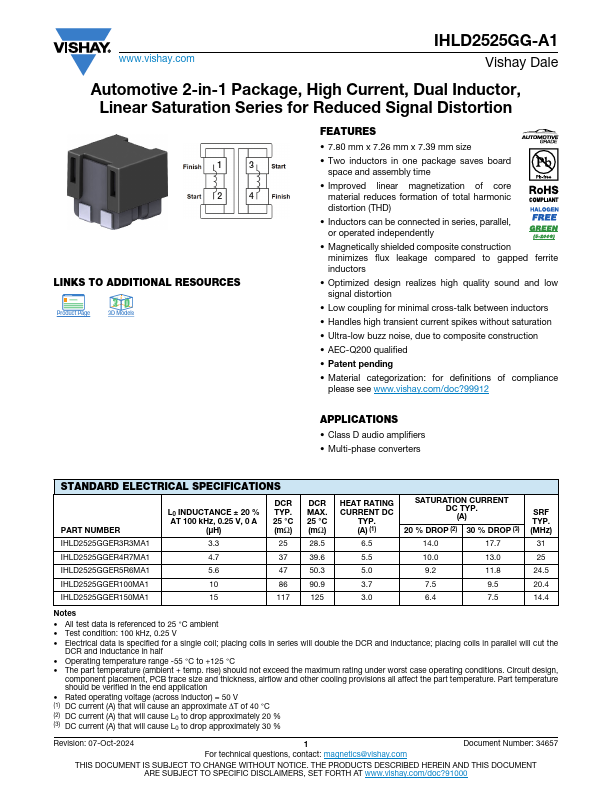

Features

7.80 mm x 7.26 mm x 7.39 mm size.
Two inductors in one package saves board space and assembly time.
Improved linear magnetization of core material reduces formation of total harmonic distortion (THD).
Inductors can be connected in series, parallel, or operated independently.
Magnetically shielded composite construction minimizes flux leakage compared to gapped ferrite inductors.
Optimized design realizes high quality sound and low signal dis.
