IHLD-3232HB-5A - High Current Dual Inductors

Vishay

📥 Download Datasheet

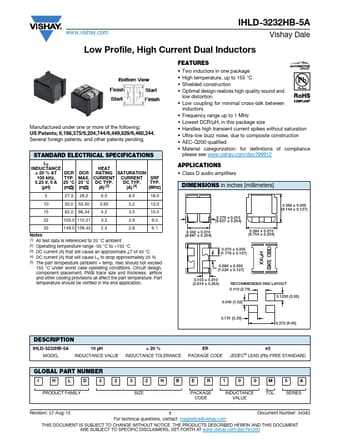

IHLD-3232HB-5A Datasheet Preview — Preview of IHLD-3232HB-5A PDF

Datasheet Details

Part number	IHLD-3232HB-5A
Manufacturer	Vishay
File Size	230.91 KB
Description	High Current Dual Inductors
Datasheet	IHLD-3232HB-5A-Vishay.pdf

IHLD-3232HB-5A Product details

Description

IHLD-3232HB-5A 10 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLD3 2 3 2HBER1 0 0M5 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.SERIES Revision: 27-Aug-15 1 Document Number: 34383 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.v

Features

Two inductors in one package.
High temperature, up to 155 °C.
Shielded construction.
Optimal design realizes high quality sound and low distortion.
Low coupling for minimal cross-talk between inductors.
Frequency range up to 1 MHz.
Lowest DCR/μH, in this package size.
Handles high transient current spikes without saturation.
Ultra-low buzz noise, due to composite construction.
AEC-Q200 qualified.
