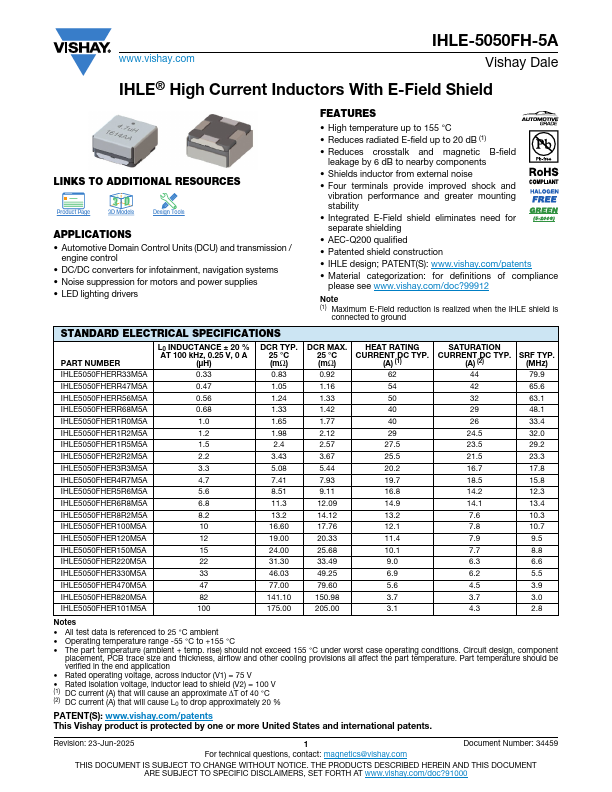

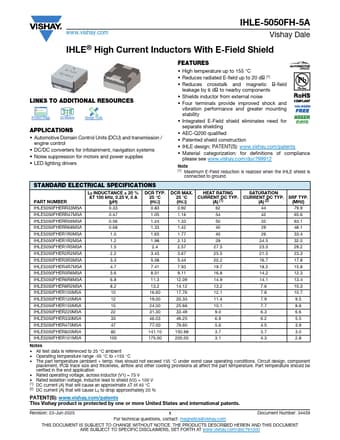

IHLE-5050FH-5A - High Current Inductors

Vishay

IHLE-5050FH-5A Datasheet Preview — Preview of IHLE-5050FH-5A PDF

Datasheet Details

Part number	IHLE-5050FH-5A
Manufacturer	Vishay ↗
File Size	803.09 KB
Description	High Current Inductors
Datasheet	IHLE-5050FH-5A-Vishay.pdf

IHLE-5050FH-5A Product details

Description

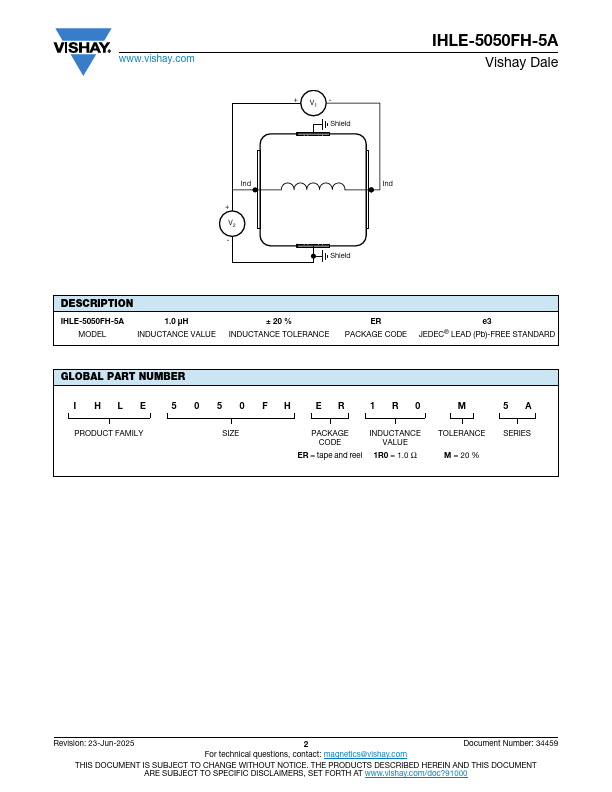

IHLE-5050FH-5A 1.0 μH ± 20 % MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLE 5 0 5 0 FH ER 1R0 M 5A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE ER = tape and reel 1R0 = 1.0 Ω TOLERANCE M = 20 % SERIES Revision: 23-Jun-2025 2 Document Number: 34459 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOC

Features

High temperature up to 155 °C.
Reduces radiated E-field up to 20 dB (1).
Reduces crosstalk and magnetic B-field leakage by 6 dB to nearby components.
Shields inductor from external noise.
Four terminals provide improved shock and vibration performance and greater mounting stability.
Integrated E-Field shield eliminates need for separate shielding.
AEC-Q200 qualified.
Patented shield construction.
IHLE design; PATEN.
