IFSC3232DB-02 - Ferrite Power Inductors

Vishay

📥 Download Datasheet

IFSC3232DB-02 Datasheet Preview — Preview of IFSC3232DB-02 PDF

Datasheet Details

Part number	IFSC3232DB-02
Manufacturer	Vishay
File Size	87.80 KB
Description	Ferrite Power Inductors
Datasheet	IFSC3232DB-02-Vishay.pdf

IFSC3232DB-02 Product details

Description

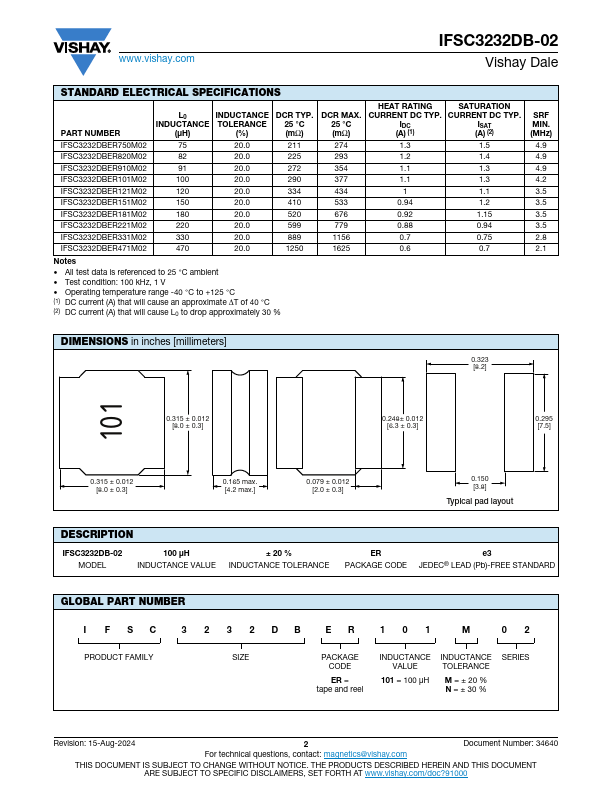

IFSC3232DB-02 MODEL 100 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FSC 3 2 3 2DB ER 101 M 02 PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 101 = 100 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SERIES Revision: 15-Aug-2024 2 Document Number: 34640 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED

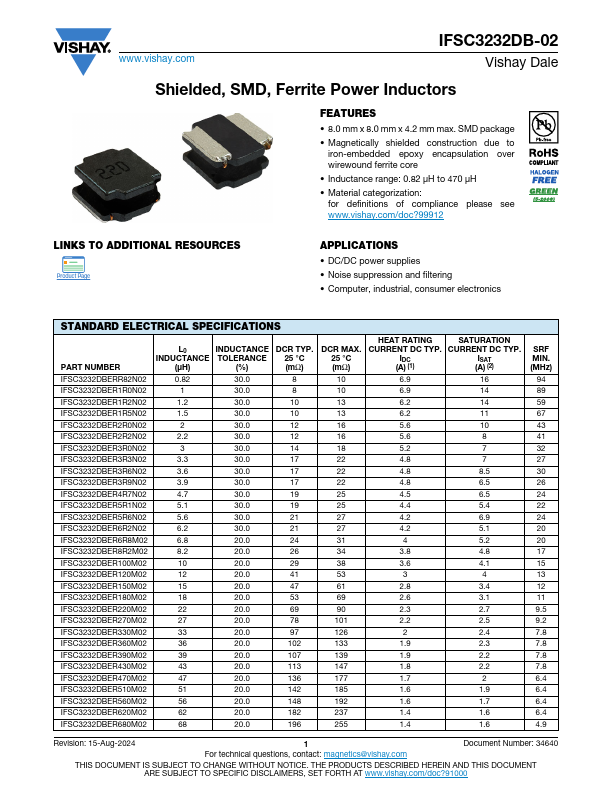

Features

8.0 mm x 8.0 mm x 4.2 mm max. SMD package.
Magnetically shielded construction due to iron-embedded epoxy encapsulation over wirewound ferrite core.
Inductance range: 0.82 μH to 470 μH.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
