IFSC1616AH-01 - SMD Ferrite Power Inductors

Vishay

📥 Download Datasheet

IFSC1616AH-01 Datasheet Preview — Preview of IFSC1616AH-01 PDF

Datasheet Details

Part number	IFSC1616AH-01
Manufacturer	Vishay
File Size	85.74 KB
Description	SMD Ferrite Power Inductors
Datasheet	IFSC1616AH-01-Vishay.pdf

IFSC1616AH-01 Product details

Description

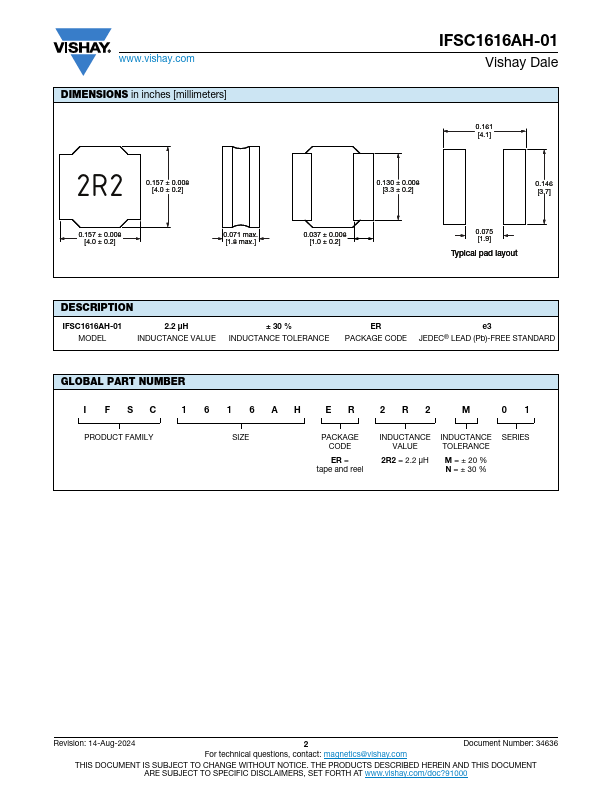

IFSC1616AH-01 MODEL 2.2 μH INDUCTANCE VALUE ± 30 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FSC 1 6 1 6AH ER 2R2 M 01 PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SERIES Revision: 14-Aug-2024 2 Document Number: 34636 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED

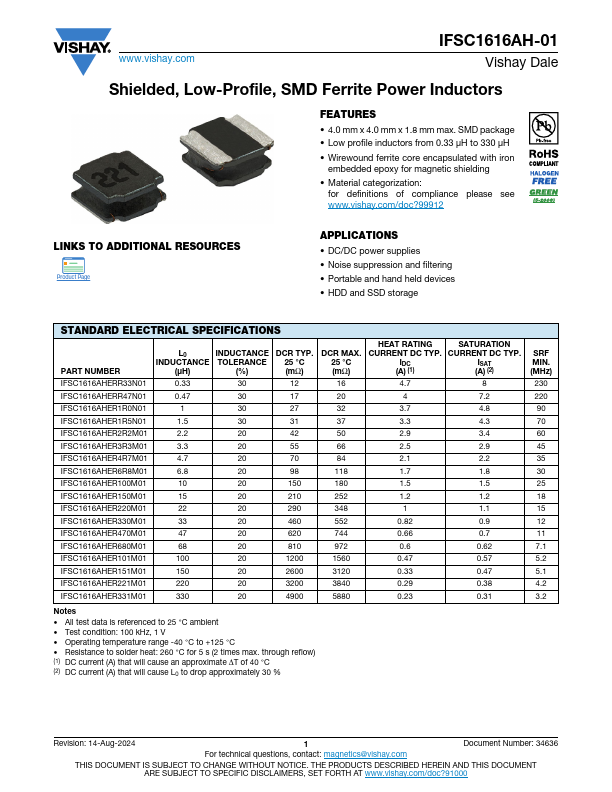

Features

4.0 mm x 4.0 mm x 1.8 mm max. SMD package.
Low profile inductors from 0.33 μH to 330 μH.
Wirewound ferrite core encapsulated with iron embedded epoxy for magnetic shielding.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
