IFSC2020DZ-01 - Ferrite Power Inductors

Vishay

📥 Download Datasheet

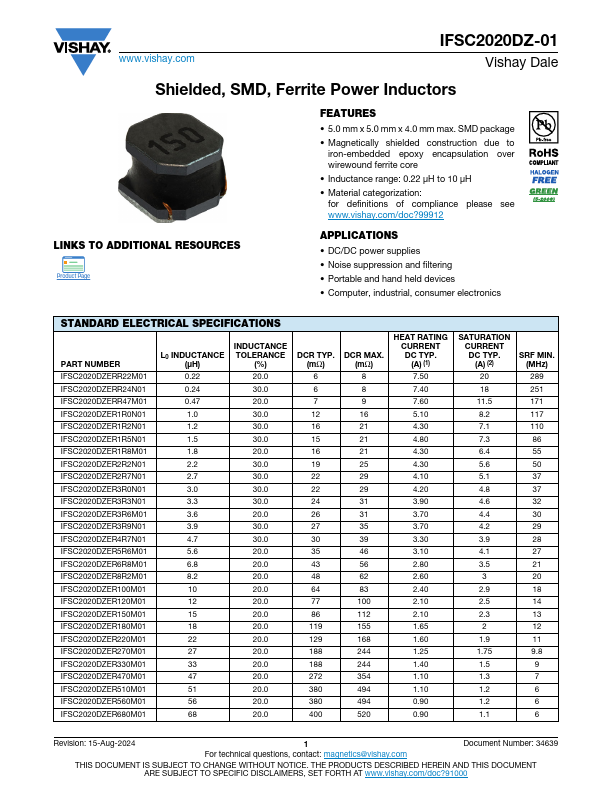

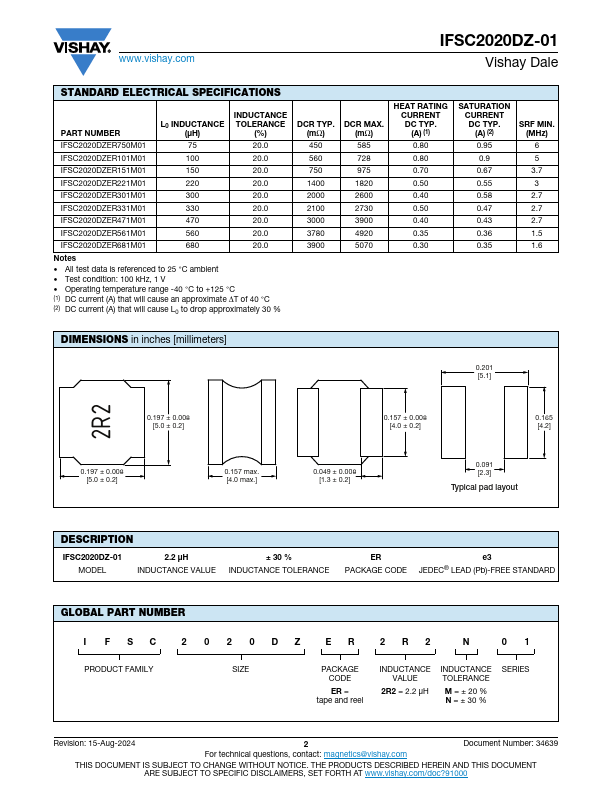

IFSC2020DZ-01 Datasheet Preview — Preview of IFSC2020DZ-01 PDF

Datasheet Details

Part number	IFSC2020DZ-01
Manufacturer	Vishay
File Size	77.50 KB
Description	Ferrite Power Inductors
Datasheet	IFSC2020DZ-01-Vishay.pdf

IFSC2020DZ-01 Product details

Description

IFSC2020DZ-01 MODEL 2.2 μH INDUCTANCE VALUE ± 30 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FSC 2 0 2 0DZ ER 2R2 N 01 PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SERIES Revision: 15-Aug-2024 2 Document Number: 34639 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED

Features

5.0 mm x 5.0 mm x 4.0 mm max. SMD package.
Magnetically shielded construction due to iron-embedded epoxy encapsulation over wirewound ferrite core.
Inductance range: 0.22 μH to 10 μH.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
