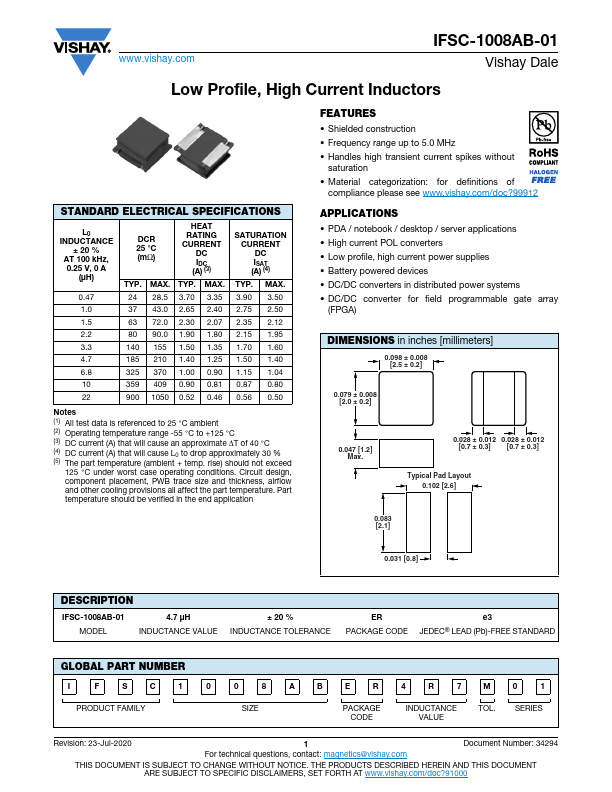

IFSC-1008AB-01 4.7 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I F SC1 0 0 8 ABER4R7M0 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.

SERIES Revision: 01-Mar-18 1 Document Number: 34294 For techni

www.vishay.com IFSC-1008AB-01 Vishay Dale Low Profile, High Current Inductors STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE ± 20 % AT 100 kHz, 0.25 V, 0 A (μH) DCR 25 °C (m) HEAT RATING CURRENT DC IDC (A) (3) TYP.

MAX.

TYP.

MAX.

SATURATION CURRENT DC ISAT (A) (4) TYP.

MAX.

0.47 25 29 3.70 3.33 3.90 3.50 1.0 37 43 2.60 2.34 2.70 2.50 1.5 63 72 2.20 1.98 2.30 2.07 2.2 80 90 1.85 1.70 2.15 1.95 3.3 140 155 1.45 1.31 1.70 1.60 4.7 190 212 1.20 1.08 1.50 1.40 6.8 325 370 1.00 0.90

IFSC-1008AB-01 Features

* Shielded construction

* Frequency range up to 5.0 MHz

* Handles high transient current spikes without saturation

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

* PDA/notebook/desktop/server applicati
