IFCL-5050HZ - Coupled Ferrite Power Inductors

Vishay

📥 Download Datasheet

IFCL-5050HZ Datasheet Preview — Preview of IFCL-5050HZ PDF

Datasheet Details

Part number	IFCL-5050HZ
Manufacturer	Vishay
File Size	102.60 KB
Description	Coupled Ferrite Power Inductors
Datasheet	IFCL-5050HZ-Vishay.pdf

IFCL-5050HZ Product details

Description

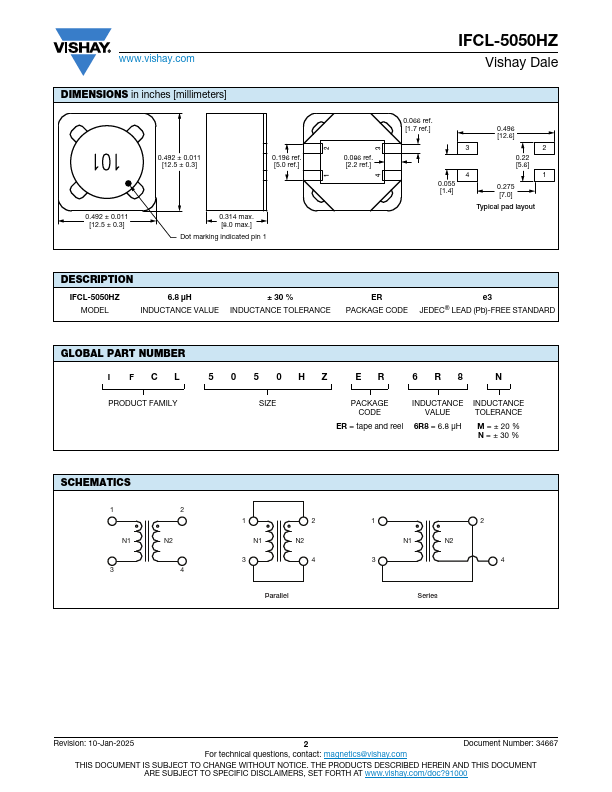

IFCL-5050HZ MODEL 6.8 μH ± 30 % INDUCTANCE VALUE INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FCL PRODUCT FAMILY 5 0 5 0HZ ER 6R8 N SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 6R8 = 6.8 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SCHEMATICS 1 N1 3 2 N2 4 1 N1 3 2 N2 4 Parallel 1 N1 3 2 N2 4 Series Revision: 10-Jan-2025 2 Document Number: 34667 For technical questions, contact: magnetics@vishay.com THIS DOCUME

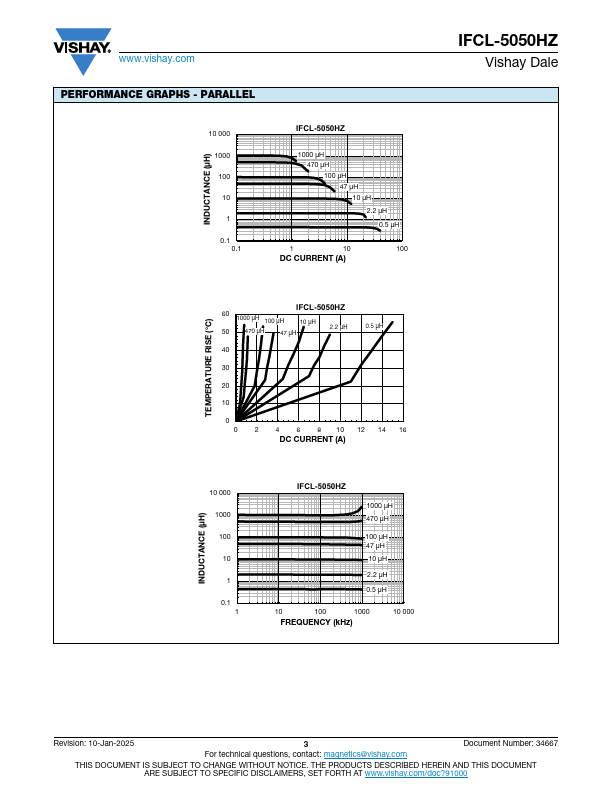

Features

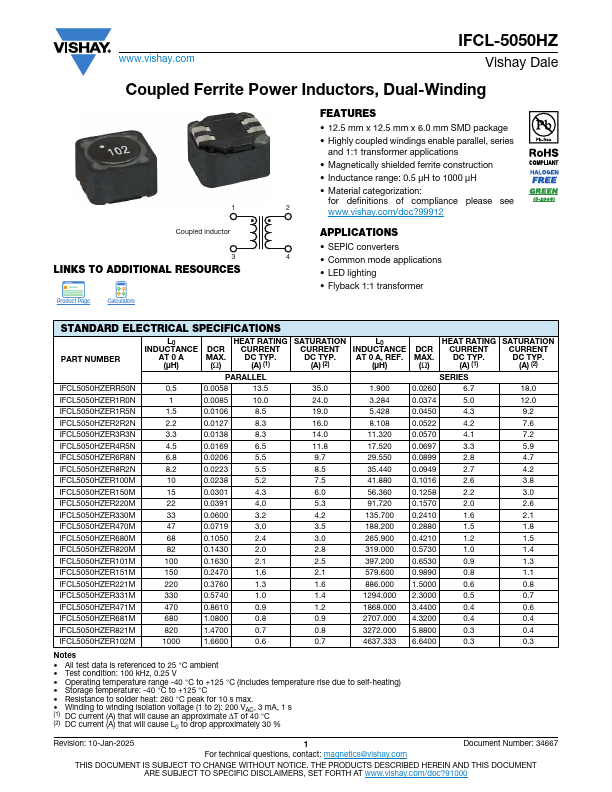

12.5 mm x 12.5 mm x 6.0 mm SMD package.
Highly coupled windings enable parallel, series and 1:1 transformer.
