IFCL-3030DE - Coupled Ferrite Power Inductors

Vishay

📥 Download Datasheet

IFCL-3030DE Datasheet Preview — Preview of IFCL-3030DE PDF

Datasheet Details

Part number	IFCL-3030DE
Manufacturer	Vishay
File Size	105.50 KB
Description	Coupled Ferrite Power Inductors
Datasheet	IFCL-3030DE-Vishay.pdf

IFCL-3030DE Product details

Description

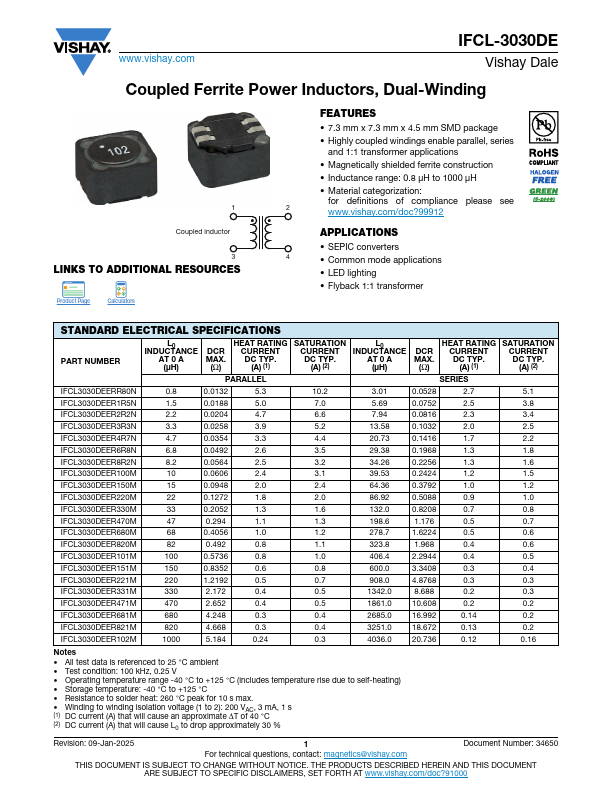

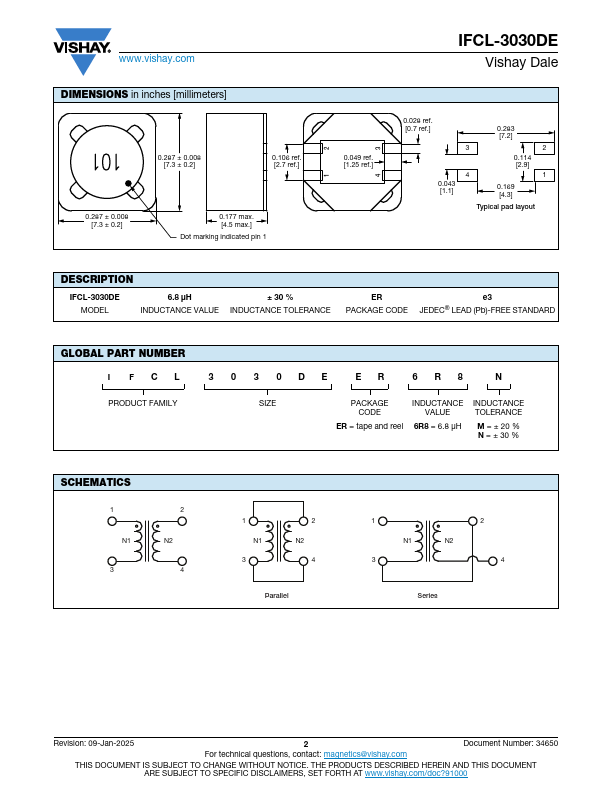

IFCL-3030DE MODEL 6.8 μH ± 30 % INDUCTANCE VALUE INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FCL PRODUCT FAMILY 3 0 3 0DE ER 6R8 N SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 6R8 = 6.8 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SCHEMATICS 1 N1 3 2 N2 4 1 N1 3 2 N2 4 Parallel 1 N1 3 2 N2 4 Series Revision: 09-Jan-2025 2 Document Number: 34650 For technical questions, contact: magnetics@vishay.com THIS DOCUME

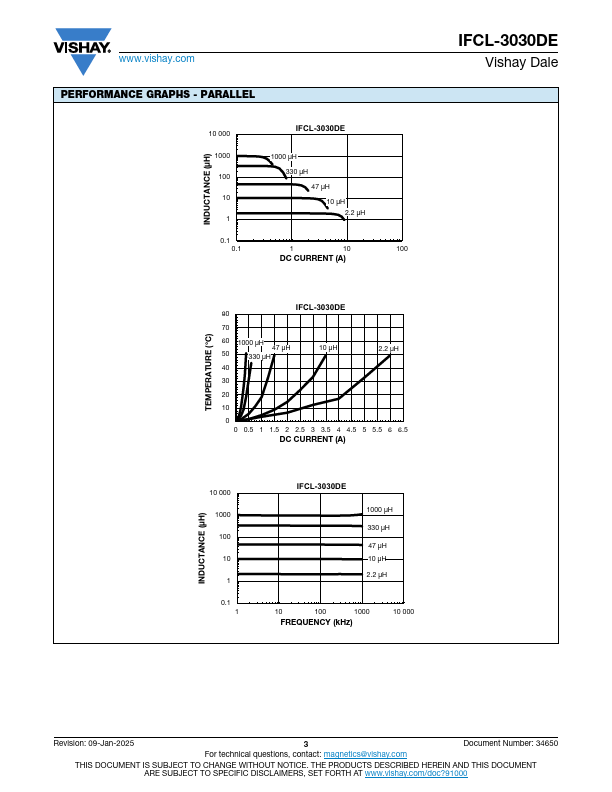

Features

7.3 mm x 7.3 mm x 4.5 mm SMD package.
Highly coupled windings enable parallel, series and 1:1 transformer.
