IFCB-0402 - Thin Film Chip Inductors

Vishay

📥 Download Datasheet

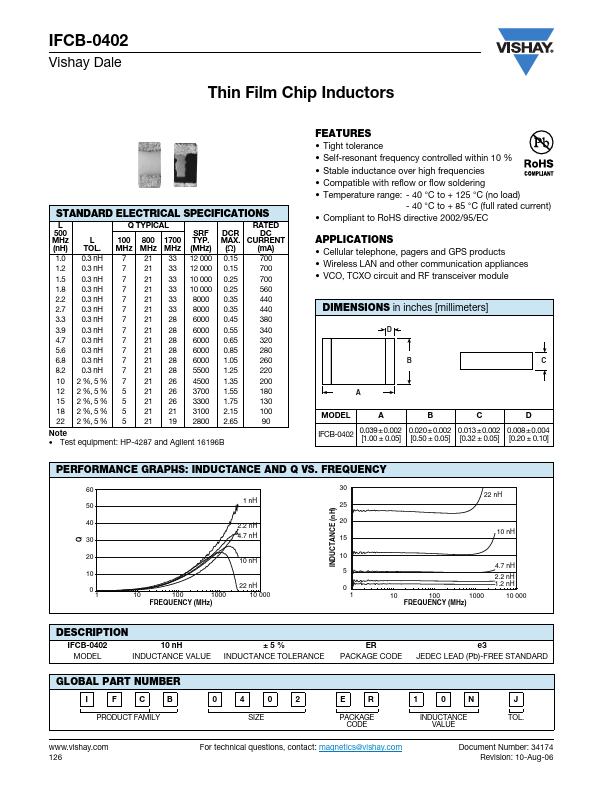

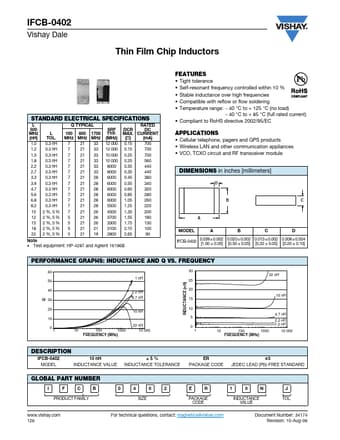

IFCB-0402 Datasheet Preview — Preview of IFCB-0402 PDF

Datasheet Details

Part number	IFCB-0402
Manufacturer	Vishay
File Size	87.57 KB
Description	Thin Film Chip Inductors
Datasheet	IFCB-0402-Vishay.pdf

IFCB-0402 Product details

Description

IFCB-0402 MODEL 10 nH INDUCTANCE VALUE ±5% INDUCTANCE TOLERANCE ER PACKAGE CODE e3 JEDEC LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I F C B PRODUCT FAMILY 0 4 0 2 SIZE E R PACKAGE CODE 1 0 N INDUCTANCE VALUE J TOL.www.vishay.com 126 For technical questions, contact: magnetics@vishay.com Document Number: 34174 Revision: 10-Aug-06 www.vishay.com Disclaimer Legal Disclaimer Notice Vishay ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTIC

Features

Tight tolerance.
Self-resonant frequency controlled within 10 %.
Stable inductance over high frequencies.
Compatible with reflow or flow soldering.
Temperature range: - 40 °C to + 125 °C (no load) - 40 °C to + 85 °C (full rated current).
Compliant to RoHS directive 2002/95/EC.
