IDCP3020-01 - Ferrite Power Inductor

📥 Download Datasheet

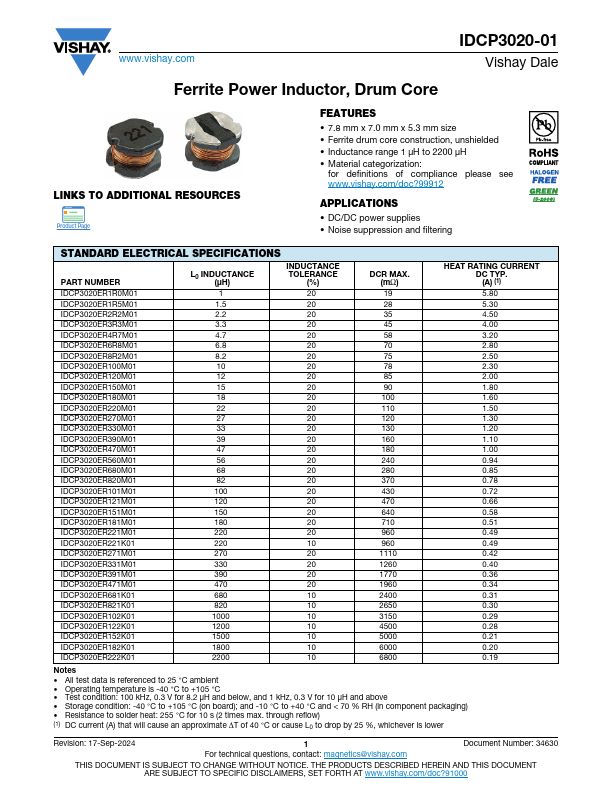

Preview of IDCP3020-01 PDF

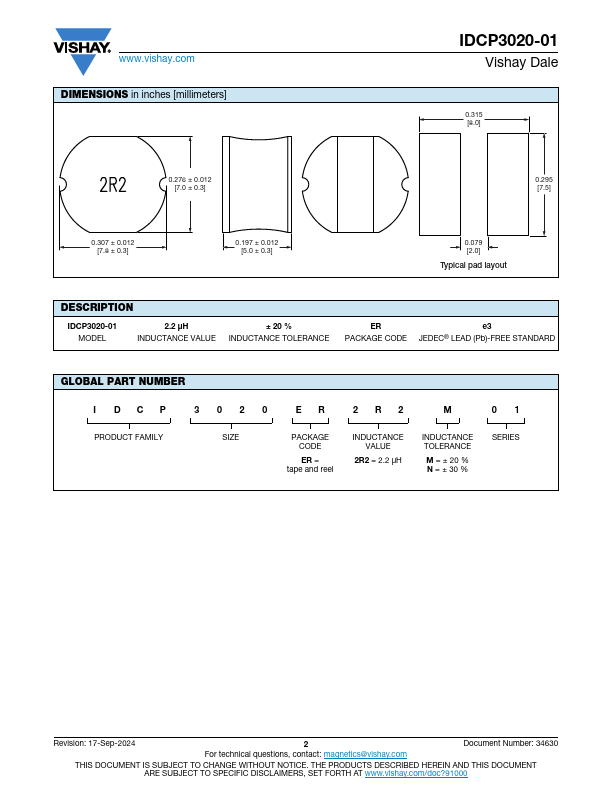

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number IDCP3020-01
Manufacturer Vishay
File Size 79.54 KB
Description Ferrite Power Inductor
Datasheet download datasheet IDCP3020-01-Vishay.pdf

IDCP3020-01 Product details

Description

IDCP3020-01 MODEL 2.2 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I DCP 3020 ER 2R2 M 01 PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % SERIES Revision: 17-Sep-2024 2 Document Number: 34630 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN

Features
