IDC05S60CE - Schottky Diode

Infineon Technologies

IDC05S60CE Description

IDC05S60CE 2nd generation thinQ!TM SiC Schottky Diode .
AQL 0,65 for visual inspection according to failure catalog Electrostatic Discharge Sensitive Device according to MIL-STD 883 Published by Infineon T.

IDC05S60CE Features

* Revolutionary semiconductor material Silicon Carbide
* Switching behavior benchmark
* No reverse recovery
* No temperature influence on the switching behavior
* No forward recovery www. DataSheet4U. net
* High surge current capability

IDC05S60CE Applications

* SMPS, PFC, snubber C A Chip Type IDC05S60CE VBR 600V IF 5A Die Size 1.45 x 1.162 mm2 Package sawn on foil Mechanical Parameter Raster size Anode pad size Area total Thickness Wafer size Max. possible chips per wafer Passivation frontside Anode metal Cathode metal Die bond Wire bond

📥 Download Datasheet

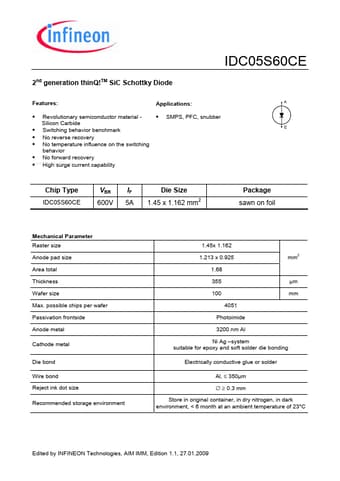

IDC05S60CE Datasheet Preview — Preview of IDC05S60CE PDF

Datasheet Details

Part number: IDC05S60CE
Manufacturer: Infineon ↗ Technologies
File Size: 124.56 KB
Datasheet: IDC05S60CE_InfineonTechnologies.pdf
Description: Schottky Diode
