DG2523 - Dual DPDT / Quad SPDT Analog Switch

Product Overview

Vishay

📥 Download Datasheet

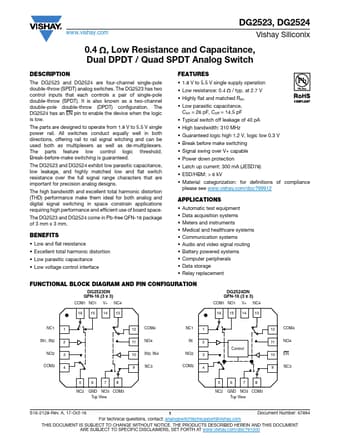

DG2523 Dual DPDT / Quad SPDT Analog Switch by Vishay - Datasheet Preview — Datasheet preview – DG2523

Datasheet Details

Part number	DG2523
Manufacturer	Vishay
File Size	154.33 KB
Description	Dual DPDT / Quad SPDT Analog Switch
Datasheet	DG2523 Datasheet
Additional preview pages of the DG2523 datasheet.

Product details

Description

The DG2523 and DG2524 are four-channel single-pole double-throw (SPDT) analog switches.

Features

1.8 V to 5.5 V single supply operation.
Low resistance: 0.4  / typ. at 2.7 V.
Highly flat and matched Ron.
Low parasitic capacitance, Con = 26 pF, Coff = 14.5 pF.
Typical switch off leakage of 40 pA.
High bandwidth: 310 MHz.
Guaranteed logic high 1.2 V, logic low 0.3 V.
Break before make switching.
Signal swing over V+ capable.
Power down protection.
Latch up current: 300 mA (JESD78).
ES.
