DG2503 - Quad SPST Analog Switches

Product Overview

Vishay

Datasheet Details

Part number	DG2503
Manufacturer	Vishay
File Size	195.68 KB
Description	Quad SPST Analog Switches
Datasheet	DG2503 Datasheet
Note	This datasheet PDF includes multiple part numbers: DG2503, DG2501. Please refer to the document for exact specifications by model.

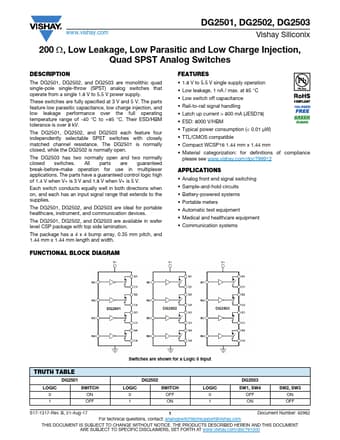

Additional preview pages of the DG2503 datasheet.

Product details

Description

The DG2501, DG2502, and DG2503 are monolithic quad single-pole single-throw (SPST) analog switches that operate from a single 1.8 V to 5.5 V power supply.

Features

1.8 V to 5.5 V single supply operation.
Low leakage, 1 nA / max. at 85 °C.
Low switch off capacitance.
Rail-to-rail signal handling.
Latch up current > 800 mA (JESD78).
ESD: 8000 V/HBM.
Typical power consumption (< 0.01 μW).
TTL/CMOS compatible.
Compact WCSP16 1.44 mm x 1.44 mm.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
