DG25X12T2 - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

DG25X12T2 IGBT by STARPOWER - Datasheet Preview — Datasheet preview – DG25X12T2

Datasheet Details

Part number	DG25X12T2
Manufacturer	STARPOWER
File Size	518.40 KB
Description	IGBT
Datasheet	DG25X12T2 Datasheet

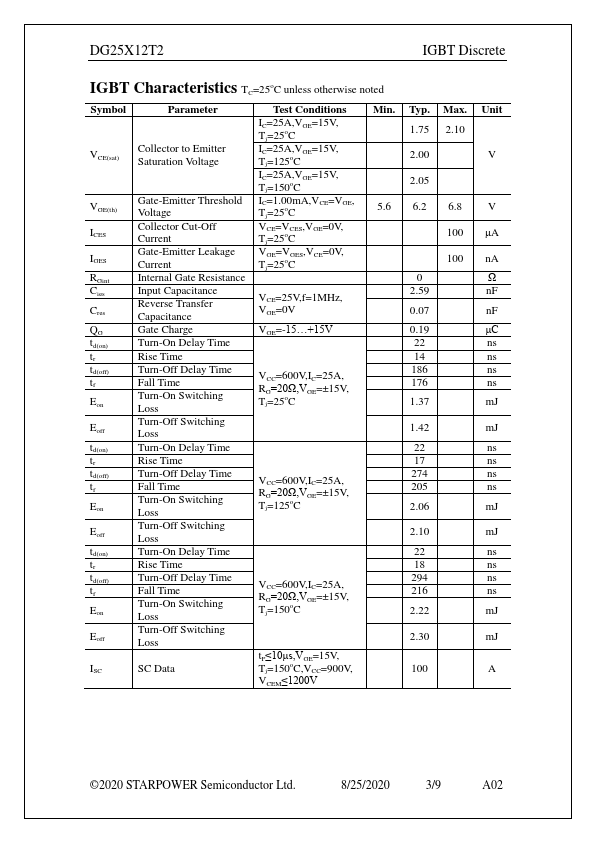

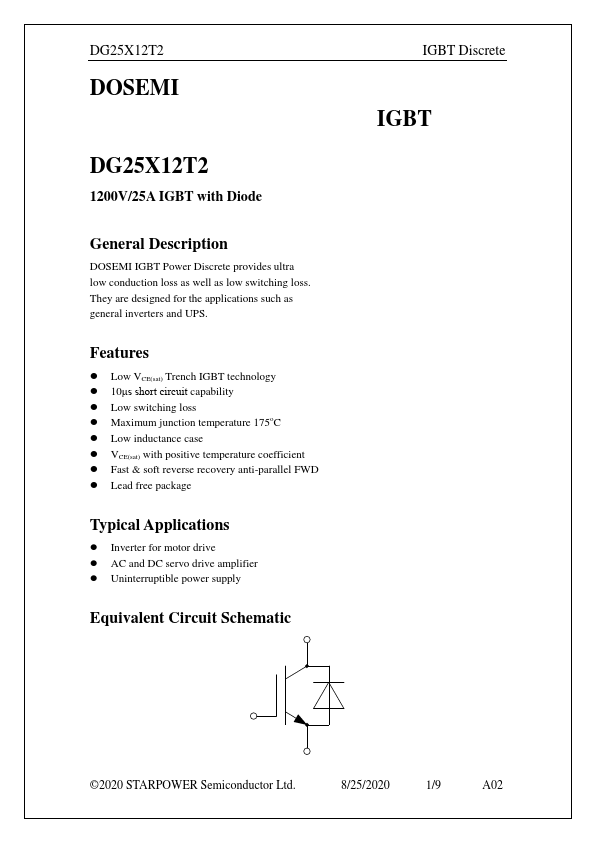

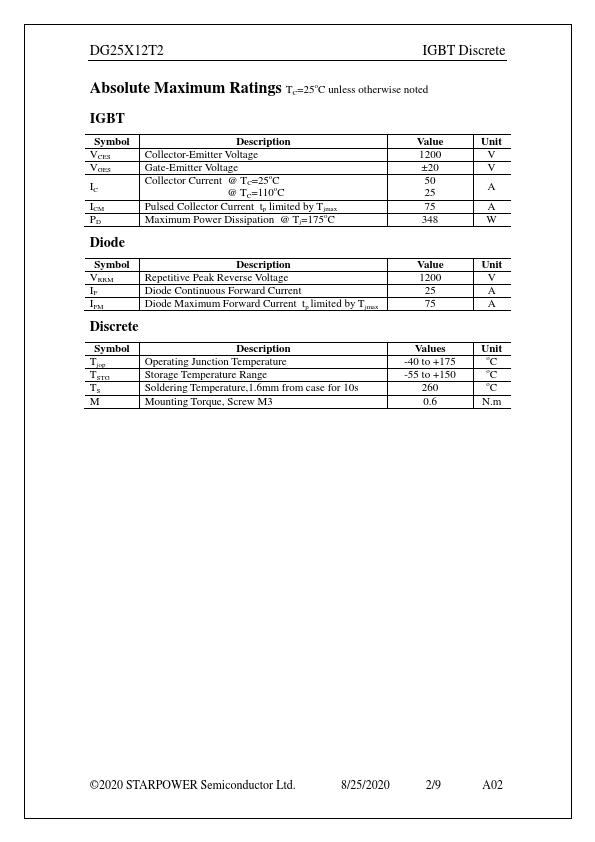

Additional preview pages of the DG25X12T2 datasheet.

Product details

Description

DOSEMI IGBT Power Discrete provides ultra low conduction loss as well as low switching loss.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
Low switching loss.
Maximum junction temperature 175oC.
Low inductance case.
VCE(sat) with positive temperature coefficient.
Fast & soft reverse recovery anti-parallel FWD.
Lead free package Typical.
