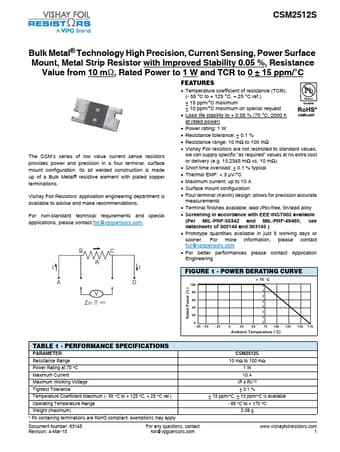

CSM2512S Datasheet (Vishay) - Metal Strip Resistor

CSM2512S, Metal Strip Resistor

CSM2512S Bulk Metal® Technology High Precision, Current Sensing, Power Surface Mount, Metal Strip Resistor with Improved Stability 0.05 %, Resistance Value from 10 m, Rated Power to 1 W and TCR to 0 ± 15 ppm/°C The CSM’s series of low value current sense resistors provides power and precision in a four terminal, surface mount configuration.

Its all welded construction is made up of a Bulk Metal® resistive element with plated copper terminations.

Vishay Foil Resistors’ application engineering

CSM2512S Features

* Temperature coefficient of resistance (TCR): (- 55 °C to + 125 °C, + 25 °C ref.) ± 15 ppm/°C maximum ± 10 ppm/°C maximum on special request

* Load life stability to ± 0.05 % (70 °C, 2000 h at rated power)

* Power rating: 1 W

* Resistance tolerance: ± 0.1 %

* Resistance range
