CSM - Metal Strip Resistor

Vishay

📥 Download Datasheet

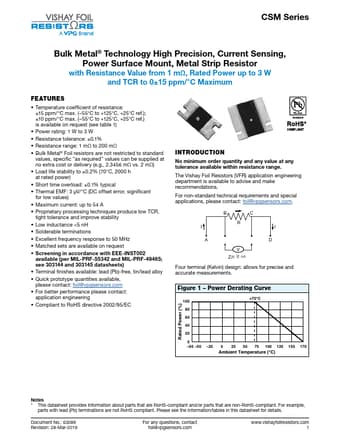

CSM Datasheet Preview — Preview of CSM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CSM
Manufacturer	Vishay
File Size	695.27 KB
Description	Metal Strip Resistor
Datasheet	CSM-Vishay.pdf

CSM Product details

Features

Temperature coefficient of resistance: ± 15 ppm/°C max. (- 55 °C to + 125 °C, + 25 °C ref. ); ± 10 ppm/°C max. (- 55 °C to + 125 °C, + 25 °C ref. ) is available on request (see table 1).
Power rating: 1 W to 3 W.
Resistance tolerance: ± 0.1 %.
Resistance range: 1 mΩ to 200 mΩ (1).
Vishay Foil resistors are not restricted to standard values, specific “as required” values can be supplied at no extra cost or delivery (e. g. 2.3456 mΩ vs. 2 mΩ).
Lo.
