CSM2512 - Metal Strip Resistor

Vishay

📥 Download Datasheet

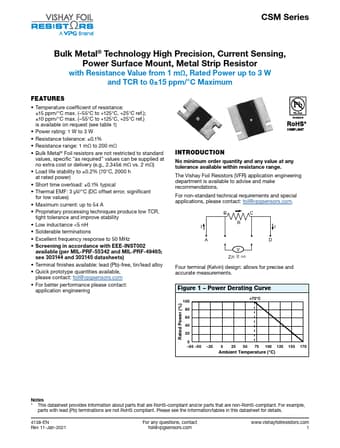

CSM2512 Datasheet Preview — Preview of CSM2512 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CSM2512
Manufacturer	Vishay
File Size	695.27 KB
Description	Metal Strip Resistor
Datasheet	CSM2512_Vishay.pdf

CSM2512 Product details

Features

Temperature coefficient of resistance: ±15 ppm/°C max. (.
55°C to +125°C, +25°C ref. ); ±10 ppm/°C max. (.
55°C to +125°C, +25°C ref. ) is available on request (see table 1).
Power rating: 1 W to 3 W.
Resistance tolerance: ±0.1%.
Resistance range: 1 mΩ to 200 mΩ.
Bulk Metal® Foil resistors are not restricted to standard values, specific “as required” values can be supplied at no extra cost or delivery (e. g. , 2.3456 mΩ vs. 2 mΩ).
