CNY70 - Reflective Optical Sensor

Vishay Telefunken

The CNY70 by Vishay Telefunken is a Reflective Optical Sensor. Below is the official datasheet preview.

📥 Download Datasheet

CNY70 Reflective Optical Sensor by Vishay Telefunken - Datasheet Preview — Official preview page of the CNY70 Reflective Optical Sensor datasheet (Vishay Telefunken).

Datasheet Details

Part number	CNY70
Manufacturer	Vishay Telefunken
File Size	239.86 KB
Description	Reflective Optical Sensor
Datasheet	CNY70_VishayTelefunken.pdf
Additional preview pages of the CNY70 datasheet.

CNY70 Product details

Description

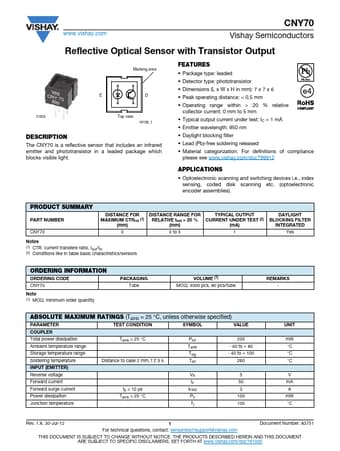

The CNY70 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package which blocks visible light.

Features

Package type: leaded.
Detector type: phototransistor.
Dimensions (L x W x H in mm): 7 x 7 x 6.
Peak operating distance: < 0.5 mm.
Operating range within > 20 % relative collector current: 0 mm to 5 mm.
Typical output current under test: IC = 1 mA.
Emitter wavelength: 950 nm.
Daylight blocking filter.
Lead (Pb)-free soldering released.
Material categorization: For definitions of compliance please see www. vi.
