CNY75BX, CNY75AX - OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT

Name: CNY75BX
SKU: CNY75BX-1357416

ISOCOM

📥 Download Datasheet

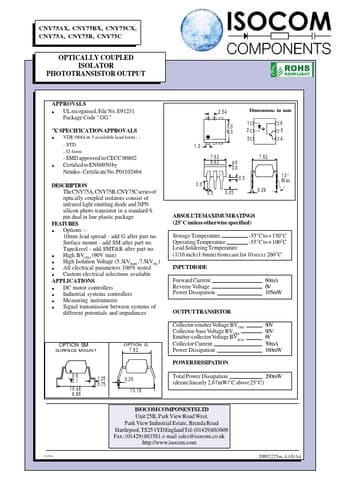

CNY75BX Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY75BX, CNY75AX. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CNY75BX, CNY75AX
Manufacturer	ISOCOM
File Size	79.25 KB
Description	OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT
Datasheet	CNY75AX-ISOCOM.pdf
Note	This datasheet PDF includes multiple part numbers: CNY75BX, CNY75AX. Please refer to the document for exact specifications by model.

CNY75BX Product details

Description

The CNY75A, CNY75B, CNY75C series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package.

Features

l Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High BVCEO (90V min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available.
