CNY75 - Optocoupler

Description

The CNY75(G) series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package.

Features

  • According to VDE 0884 D Rated impulse voltage (transient overvoltage) VIOTM = 6 kV peak D Isolation test voltage (partial discharge test voltage) Vpd = 1.6 kV D Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS (848 V peak) D Rated recurring peak voltage (repetitive) VIORM = 600 VRMS D Creeping current resistance according to VDE 0303/IEC 112 Comparative Tracking Index: CTI = 275 D Thickness through insulation ≥ 0.75 mm D Further approvals: BS 415, BS 7002, SETI: IEC 950, UL 1577: Fil.

📥 Download Datasheet

Datasheet Details

Part number CNY75
Manufacturer TEMIC
File Size 136.37 KB
Description Optocoupler
Datasheet download datasheet CNY75 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CNY75A Optocoupler Vishay Telefunken
CNY75A OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM
CNY75AX OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM
CNY75B Optocoupler Vishay Telefunken
CNY75B OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM

Other Datasheets by TEMIC

Part Number Description
CNY75A Optocoupler
CNY75B Optocoupler
CNY75C Optocoupler
CNY21Exi Optocoupler
CNY21N Optocoupler

Full PDF Text Transcription

Click to expand full text

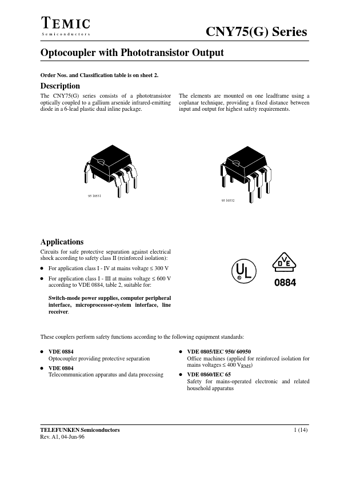

CNY75(G) Series Optocoupler with Phototransistor Output Order Nos. and Classification table is on sheet 2. Description The CNY75(G) series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package. The elements are mounted on one leadframe using a coplanar technique, providing a fixed distance between input and output for highest safety requirements.
