VSMY1850 - High Speed Infrared Emitting Diodes

Vishay Siliconix

📥 Download Datasheet

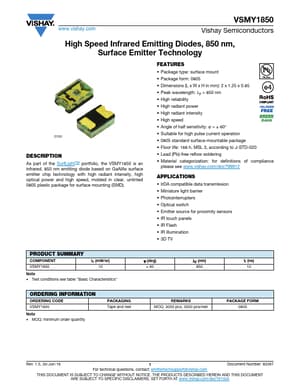

VSMY1850 Datasheet Preview — Preview of VSMY1850 PDF

Datasheet Details

Part number	VSMY1850
Manufacturer	Vishay Siliconix
File Size	141.86 KB
Description	High Speed Infrared Emitting Diodes
Datasheet	VSMY1850_VishaySiliconix.pdf

VSMY1850 Product details

Description

As part of the SurfLightTM portfolio, the VSMY1850 is an infrared, 850 nm emitting diode based on GaAlAs surface emitter chip technology with high radiant intensity, high optical power and high speed, molded in clear, untinted 0805 plastic package for surface mounting (SMD).

Features

Package type: surface mount.
Package form: 0805.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85.
Peak wavelength: λp = 850 nm.
High reliability.
High radiant power.
High radiant intensity.
High speed.
Angle of half sensitivity: ϕ = ± 60°.
Suitable for high pulse current operation.
0805 standard surface-mountable package.
Floor life: 168 h, MSL 3, according to J-STD-020.
Lead (Pb)-.
