VSMY1940ITX01 - High Speed Infrared Emitting Diodes

Vishay

📥 Download Datasheet

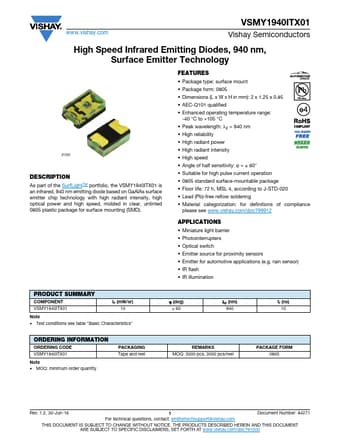

VSMY1940ITX01 Datasheet Preview — Preview of VSMY1940ITX01 PDF

Datasheet Details

Part number	VSMY1940ITX01
Manufacturer	Vishay
File Size	158.19 KB
Description	High Speed Infrared Emitting Diodes
Datasheet	VSMY1940ITX01-Vishay.pdf

VSMY1940ITX01 Product details

Description

As part of the SurfLightTM portfolio, the VSMY1940ITX01 is an infrared, 940 nm emitting diode based on GaAlAs surface emitter chip technology with high radiant intensity, high optical power and high speed, molded in clear, untinted 0805 plastic package for surface mounting (SMD).

Features

Package type: surface mount.
Package form: 0805.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85.
AEC-Q101 qualified.
Enhanced operating temperature range: -40 °C to +105 °C.
Peak wavelength: λp = 940 nm.
High reliability.
High radiant power.
High radiant intensity.
High speed.
Angle of half sensitivity: ϕ = ± 60°.
Suitable for high pulse current operation.
0805 standard surface-mo.
