SUP85N03-04P Datasheet - Vishay Siliconix

SUP85N03-04P N-Channel MOSFET

SUP/SUB85N03-04P New Product Vishay Siliconix N-Channel 30-V (D-S) 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 30 rDS(on) (W) 0.0043 @ VGS = 10 V 0.007 @ VGS = 4.5 V ID (A)a 85a 85a TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP85N03-04P D S S N-Channel MOSFET Top View SUB85N03-04P ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repe.

SUP85N03-04P Datasheet (57.33 KB)

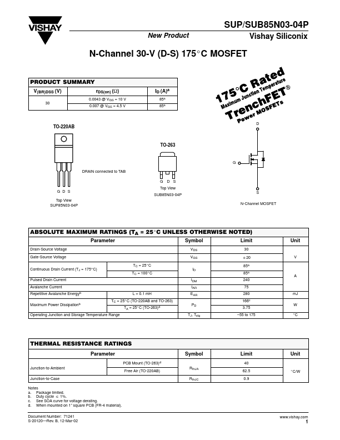

Preview of SUP85N03-04P PDF
SUP85N03-04P Datasheet Preview Page 2 SUP85N03-04P Datasheet Preview Page 3

Datasheet Details

Part number:

SUP85N03-04P

Manufacturer:

Vishay ↗ Siliconix

File Size:

57.33 KB

Description:

N-channel mosfet.
