DG2727 - (DG2727 - DG2729) Dual SPST Analog Switch

Vishay Siliconix

📥 Download Datasheet

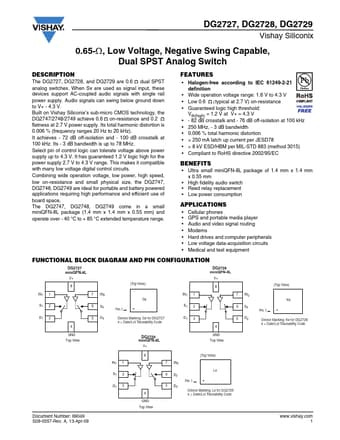

DG2727 Datasheet Preview — Preview of DG2727 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DG2727
Manufacturer	Vishay Siliconix
File Size	212.58 KB
Description	(DG2727 - DG2729) Dual SPST Analog Switch
Datasheet	DG2727_VishaySiliconix.pdf

DG2727 Product details

Description

The DG2727, DG2728, and DG2729 are 0.6 Ω dual SPST analog switches.

Features

Halogen-free according to IEC 61249-2-21 definition.
Wide operation voltage range: 1.6 V to 4.3 V.
Low 0.6 Ω (typical at 2.7 V) on-resistance.
Guaranteed logic high threshold: Vth(high) = 1.2 V at V+ = 4.3 V.
- 82 dB crosstalk and - 76 dB off-isolation at 100 kHz.
250 MHz, - 3 dB bandwidth.
0.006 % total harmonic distortion.
> 250 mA latch up current per JESD78.
> 8 kV ESD/HBM per MIL-STD 883 (method 3015).
